    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution

    Ask Lasest Price
    Model Number : MPO Modular
    Brand Name : OEM
    Price : $4.00/pieces 500-1999 pieces
    • Product Details
    • Company Profile

    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution

    Products Description

    Description

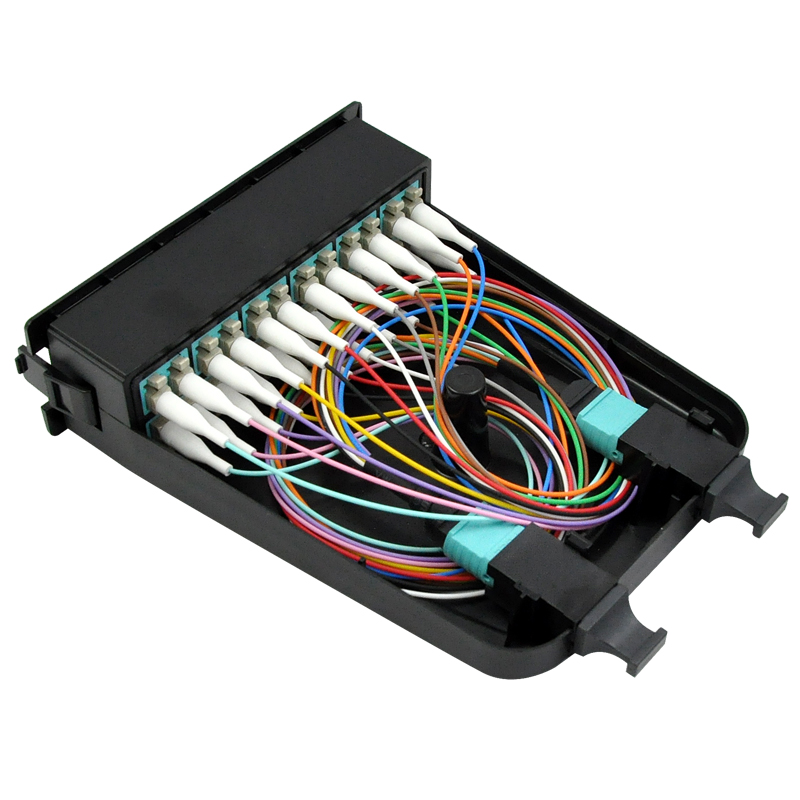

    The MPO Cassette features a high-density modular design that enables you to easily adapt to changes in demand by replacing modules while retaining your existing backbone cable infrastructure.
    This innovative system features a compact design with simplex or duplex port adaptors at the front and MPO/MTP adaptors at theback, making it easy to fit into RAC and WAC series fiber optic patch panels. With this system, you can break out a multifiber trunk cable connection into up to 24 simplex- or duplex-style connections.
    Specification
    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution
    Features
    * Space Saving Design
    * Ideal for Data Center Applications
    * Installer Friendly
    * Factory preterminated module to substantially save installation time and labor
    * Can be loaded with Rack Enclosures
    * Cable terminated in high density MPO/MTP connectors
    * Singlemode or Multimode components are available
    * Available with 12 fiber and 24 fiber configurations for MTRJ (duplex); SC, LC and E2000 (simplex/duplex) connectors (other
    connector type available upon request)
    * Tested for 100% guaranteed performance with MTRJ, SC, LC, and E2000 interfaces
    * Two or more MPO/MTP assembled trunks can be easily linked together
    Applications
    * Telecommunications subscriber loop
    * Fiber to the home (FTTH)
    * CATV Syste
    * LAN/WAN
    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution
    Connector Performance
    Connector Mating
    IL Average
    IL Max
    Return Loss
    Connector Mating
    IL Average
    IL Max
    Reture Loss
    MTP/MPO(MM)
    0.20dB
    0.60dB
    NA
    MTP/MPO(SM)
    0.25dB
    0.75dB
    >60dB
    LC,SC(MM)
    0.15dB
    0.30dB
    NA
    LC.SC(SM)
    0.18dB
    0.30dB
    >55/60dB
    Technical Specification
    Element
    Characteristic
    Fibre
    OS1/OS2.OM1.0M2. 0M3.OM4
    Adaptors
    MTPIMPO. -LC Duplex: Lc Quadruple: sc Duplex
    Connectors
    MTP/MPO connector: - LC connector: SC connector
    Cassette Material
    Colled rolled steel
    Operating Temperature
    -20-+60℃
    Storage Temperature
    -40-+70°C
    Dimensions
    34x109x133mm
    Details Images
    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution
    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution
    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution
    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution
    1000 n Fiber Optic FTTH Optical Cassette Box MPO MTP Modular for Communication Solution
