    1 1*8 1*16 SC/LC APC/UPC Cassette Type Fiber Optic Equipment for Network Expansion

    Ask Lasest Price
    Model Number : SCAPC
    Brand Name : Fibconet
    Supply Ability : 500000 Piece/Pieces per Month
    Price : $5.00/pieces >=1000 pieces
    • Product Details
    • Company Profile

    1 1*8 1*16 SC/LC APC/UPC Cassette Type Fiber Optic Equipment for Network Expansion

    High Quality SC UPC 1×5 Single mode Fiber Optic Splitter Coupler Suitable for huawei FTTR solutions gpon splitter
    Products Description
    Fiber optic gpon splitter is an indoor optical routing product, featuring increased internet speed and extended wifi range which can also control smart appliances. We can provide you with the best price and customize services for your specific needs. Our factory have a large Production capacity as 50000 pieces /month.
    1 1*8 1*16 SC/LC APC/UPC Cassette Type Fiber Optic Equipment for Network Expansion

    APPLICATIONS

    · FTTx
    · Cable television (CATV)
    · Local area networks (LAN)
    · Test equipment
    · Passive optical networks(PON)
    FEATURE
    · Wide operating wavelength range:from 1260nm to 1650nm
    · Wide Operating Temperature: from -40ºC to 85ºC
    · Good channel-to-channel uniformity
    · High reliability and small size
    · Adopt high strength stainless steel, pass salt spray test
    · Adopt 100% new raw material, ROHS compliance
    · Low Insertion loss&Low PDL Compact Design
    1 1*8 1*16 SC/LC APC/UPC Cassette Type Fiber Optic Equipment for Network Expansion
    Signification
    1xN PLC Splitter Specification
    Operating Wavelength(nm)
    1260~1650
    Fiber Type
    G657A1 or as customers' order
    Port Configuration
    1x2
    1x4
    1x8
    1x16
    1x32
    1x64
    1x128
    Insertion Loss (dB)
    3.8/4.0
    7.1/7.3
    10.2/10.5
    13.5/13.7
    16.5/16.9
    20.5/21.0
    23.8/24.2
    Loss Uniformity (dB)
    0.4
    0.6
    0.8
    1.2
    1.5
    2.0
    2.5
    Polarization Dependent Loss(dB)
    0.2
    0.2
    0.2
    0.25
    0.3
    0.35
    0.4
    Wavelength Dependent Loss(dB)
    0.3
    0.3
    0.3
    0.5
    0.5
    0.5
    0.5
    Temperature Dependent Loss (-40~85 ) (dB)
    0.4
    0.4
    0.4
    0.5
    0.5
    0.5
    0.5
    Return Loss (dB)
    55/50
    Operating Temperature
    -40~+85
    Directivity (dB)
    ≥ 55
    Storage Temperature
    -40~+85
    2xN PLC Splitter Specification
    Operating Wavelength(nm)
    1260~1650
    Fiber Type
    G657A1 or as customers' order
    Port Configuration
    2x2
    2x4
    2x8
    2x16
    2x32
    2x64
    2x128
    Insertion Loss (dB)
    4.0
    7.6
    11.0
    14.4
    17.5
    21.0
    24.5
    Loss Uniformity (dB)
    0.6
    1.0
    1.2
    1.5
    1.8
    2.2
    2.5
    Polarization Dependent Loss(dB)
    0.2
    0.2
    0.3
    0.3
    0.35
    0.4
    0.4
    Wavelength Dependent Loss(dB)
    0.3
    0.4
    0.5
    0.5
    0.5
    0.5
    0.5
    Temperature Dependent Loss (-40~85 ) (dB)
    0.4
    0.4
    0.5
    0.5
    0.5
    0.5
    0.5
    Return Loss (dB)
    55/50
    Operating Temperature
    -40~+85
    Directivity (dB)
    ≥ 55
    Storage Temperature
    -40~+85

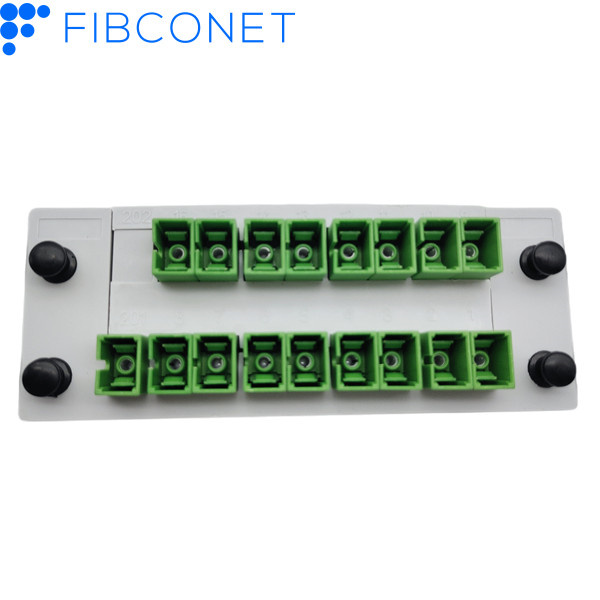

    Details Images
    1 1*8 1*16 SC/LC APC/UPC Cassette Type Fiber Optic Equipment for Network Expansion
    1 1*8 1*16 SC/LC APC/UPC Cassette Type Fiber Optic Equipment for Network Expansion
    1 1*8 1*16 SC/LC APC/UPC Cassette Type Fiber Optic Equipment for Network Expansion
    FAQ

    Title goes here.

    1. Are you a manufacturer or trade company?

    We are the manufacturer with more than 20 years' history.

    2. What is your fiber brand ?

    Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

    3. What is your main product ?

    Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal
    Box. Except that, we have very good prices for part of fiber tools!

    4. How can we place order?

    After the agreement be made on the product parameters, we will make proforma invoice for you to confirm. After advance payment
    (deposit) received, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship
    forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which offers a
    competitive freight cost.

    5. What is the quality for your products?

    All of our products are with high quality. We promise 100% recall policy if products are unqualified, and we can write it into our
    contract!

    6. How do you arrange the shipping?

    Solution A: Fibconet takes care of everything. Clients only need to collect cargo in local port or wait cargo delivery to their
    office. There are two types of shipping methods available: by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
    ship them according to your express account or ship them by our agent company, the delivery time is about four to seven days).
    Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follows the shipping company's instructions
    and finish the delivery.

    7. How can you guarantee the delivery time?

    To avoid the delay, we have built a complete and professional procedure system from production to the delivery. We have rich
    experience on production and delivery. We can regulate the penalty clause in the contract for the late delay.

    8. What's your best price for your passive fiber optic product?

    Based on the quality and quantity of goods, we would quote the best matching price for you all the time.

    9. What is your quality control for your fiber optic product?

    1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and meet
    exporting quality level demand.
    2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
    physical test, optical test. All the products are 100% tested.
    3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
    4. We have 30% spot test by Quality Assurance Department after the products finished.

    10. Why choose Fibconet Fiber Optic to cooperate?

    1. We have first-class production line and strict quality management system.
    2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
    3. We can provide the most competitive price to meet your budget.
    4. We also design and innovate the new products based on our rich experience .
    5. We have professional team to provide comprehensive one-stop service for you.

    Please always feel free to contact us for any questions, it's our honor to be on service of you!
