    FTTH 1*8 1*16 SC APC UPC G657A1 Optical PLC Fiber Optic Cassette PLC Splitter Connector

    Ask Lasest Price
    Model Number : SCAPC Optical PLC
    Brand Name : Fibconet
    Price : $5.00/pieces >=1000 pieces
    • Product Details
    • Company Profile

    FTTH 1*8 1*16 SC APC UPC G657A1 Optical PLC Fiber Optic Cassette PLC Splitter Connector

    Products Description
    FTTH 1*8 1*16 SC APC UPC G657A1 Optical PLC Fiber Optic Cassette PLC Splitter Connector
    Optical PLC APPLICATIONS

    · FTTx
    · Cable television (CATV)
    · Local area networks (LAN)
    · Test equipment
    · Passive optical networks(PON)
    Optical PLC FEATURE
    · Wide operating wavelength range:from 1260nm to 1650nm
    · Wide Operating Temperature: from -40ºC to 85ºC
    · Good channel-to-channel uniformity
    · High reliability and small size
    · Adopt high strength stainless steel, pass salt spray test
    · Adopt 100% new raw material, ROHS compliance
    · Low Insertion loss&Low PDL Compact Design
    FTTH 1*8 1*16 SC APC UPC G657A1 Optical PLC Fiber Optic Cassette PLC Splitter Connector
    Signification
    1xN PLC Splitter Specification
    Operating Wavelength(nm)
    1260~1650
    Fiber Type
    G657A1 or as customers' order
    Port Configuration
    1x2
    1x4
    1x8
    1x16
    1x32
    1x64
    1x128
    Insertion Loss (dB)
    3.8/4.0
    7.1/7.3
    10.2/10.5
    13.5/13.7
    16.5/16.9
    20.5/21.0
    23.8/24.2
    Loss Uniformity (dB)
    0.4
    0.6
    0.8
    1.2
    1.5
    2.0
    2.5
    Polarization Dependent Loss(dB)
    0.2
    0.2
    0.2
    0.25
    0.3
    0.35
    0.4
    Wavelength Dependent Loss(dB)
    0.3
    0.3
    0.3
    0.5
    0.5
    0.5
    0.5
    Temperature Dependent Loss (-40~85 ) (dB)
    0.4
    0.4
    0.4
    0.5
    0.5
    0.5
    0.5
    Return Loss (dB)
    55/50
    Operating Temperature
    -40~+85
    Directivity (dB)
    ≥ 55
    Storage Temperature
    -40~+85
    2xN PLC Splitter Specification
    Operating Wavelength(nm)
    1260~1650
    Fiber Type
    G657A1 or as customers' order
    Port Configuration
    2x2
    2x4
    2x8
    2x16
    2x32
    2x64
    2x128
    Insertion Loss (dB)
    4.0
    7.6
    11.0
    14.4
    17.5
    21.0
    24.5
    Loss Uniformity (dB)
    0.6
    1.0
    1.2
    1.5
    1.8
    2.2
    2.5
    Polarization Dependent Loss(dB)
    0.2
    0.2
    0.3
    0.3
    0.35
    0.4
    0.4
    Wavelength Dependent Loss(dB)
    0.3
    0.4
    0.5
    0.5
    0.5
    0.5
    0.5
    Temperature Dependent Loss (-40~85 ) (dB)
    0.4
    0.4
    0.5
    0.5
    0.5
    0.5
    0.5
    Return Loss (dB)
    55/50
    Operating Temperature
    -40~+85
    Directivity (dB)
    ≥ 55
    Storage Temperature
    -40~+85

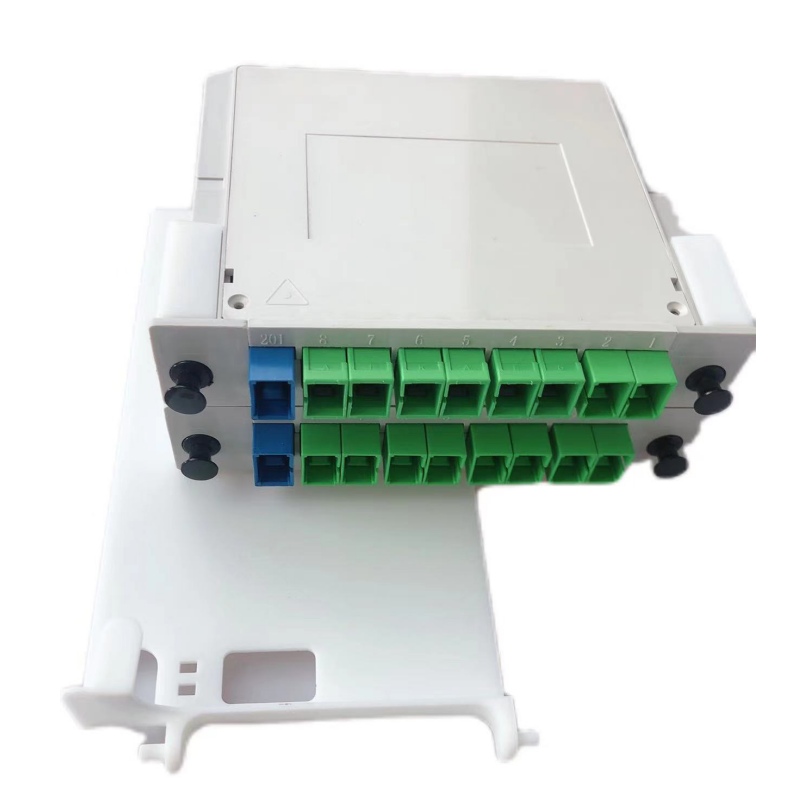

    Details Images
