    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core

    Ask Lasest Price
    Model Number : wall mounted termination box
    Brand Name : OEM
    Price : $1.00/pieces 500-1999 pieces
    • Product Details
    • Company Profile

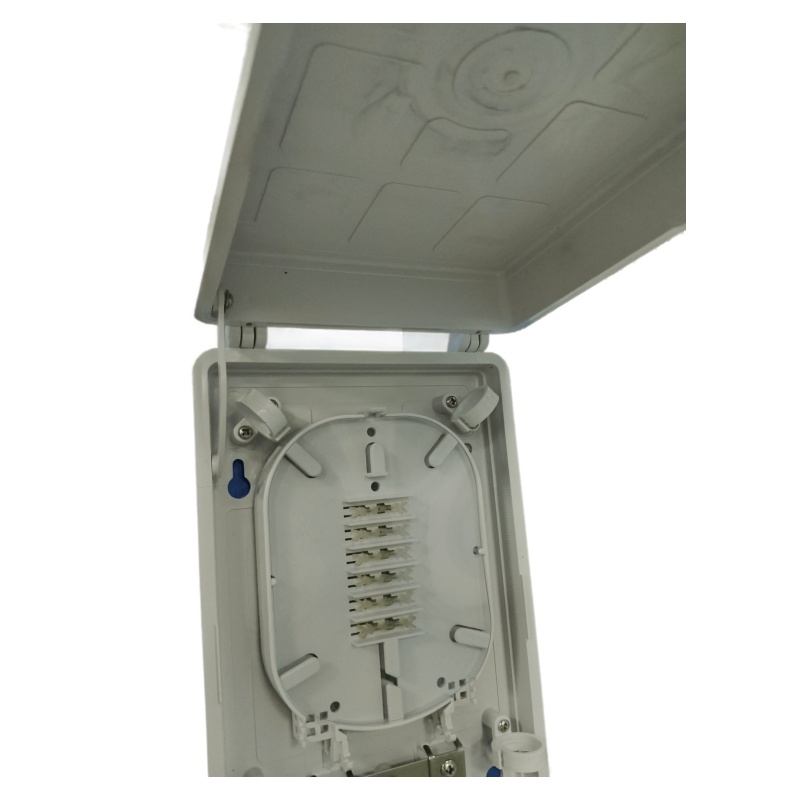

    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core

    Products Description

    Description

    1x16 wall mounted termination box is developed and produced by our company independently, the product performance conforms to the industry standard YD/T2150-2010 requirements. Mainly used in FTTX access system terminal link. The box is made of high strength ABS injection molding, with good sealing and anti-aging properties, can be used in outdoor wall-mounted, hanging pole installation or indoor wall-mounted installation.CTO box fttx CTO box fttx
    Specification
    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core






    Wall Mounted Termination Box Application
    · Data transmission
    · Telecommunication
    · Testing equipment
    · WBN
    · Optical fiber CATV
    · LAN indoor/outdoor
    Wall Mounted Termination Box Features
    · Protection Level: IP65.
    · Integrated with splice cassette and cable management rods.
    · Manage fibers in a reasonable fiber radius condition.
    · Panel for accommodating SC optical adapters.
    · Easy to maintain and extend the capacity.
    · Fiber bend radius control more than 40mm.
    · Suitable for the fusion splice or mechanical splice.
    · 1*16/1/8 Splitter can be installed as an optioin.
    · Efficient cable management.
    · 16 ports cable entrance for feeder cable and drop cable.
    · Equipment with sealing locks.
    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core
    Environmental requirement
    Working temperature:-50~+850C
    Relative humidity:s85%(+30°C)
    Atmospheric pressure:70Kpa~106Kpa
    Main technical datasheet
    Insertion loss:s0.2dB
    UPC return loss:250dB
    APC return loss:260dB
    Life of insertion and extraction:>1000
    Thunder-proof technical datasheet
    The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MQ/500V(DC); IR22x104MQ/500V
    The withstand voltage between grounding device and cabinet is no less than 3000V(DC /min, no puncture, no fiashoverU>3000V
    Installation
    Wall mounting(indoor/outdoor) Pole Mounting
    Level of protection
    P55/IP65
    Cable Entries
    Supporting uncut
    No. of Adaptor & Splitter
    Empty/Full Option(16 pcs adapters, 1*16 PLC Splitter, 16 pcs pigtails, heat-shrink tubes)
    Max. Capacity of Fiber
    16 fibers
    Max. Capacity of Splice
    16 cores
    Details Images
    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core
    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core
    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core
    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core
    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core
    Wall Mounted Termination Box Type 240*155*55 for FTTH Fiber Optic Equipment Core
