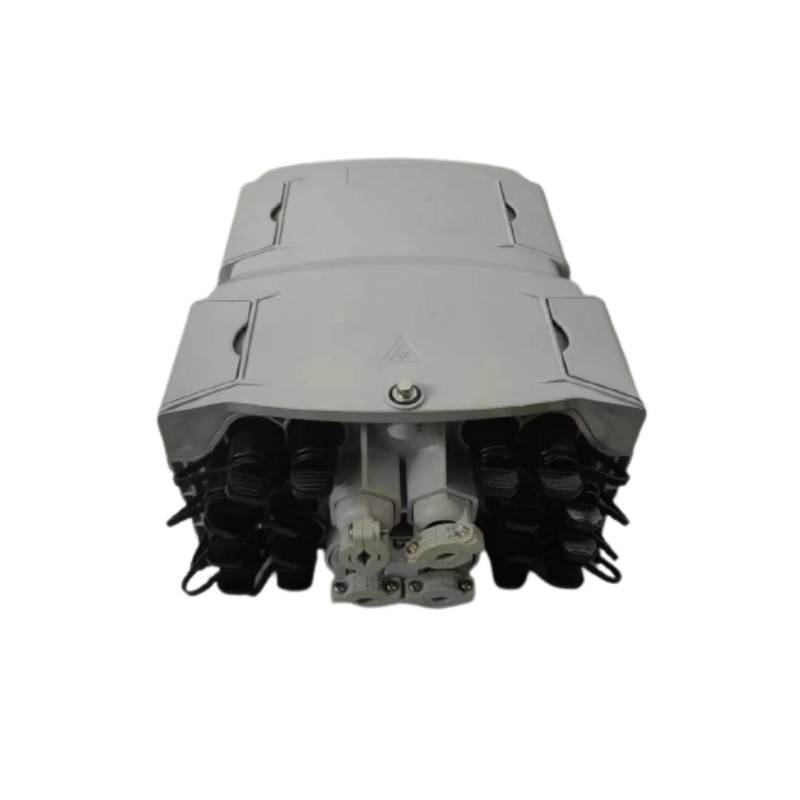

    PC ABS Material 8/16 Cores Waterproof Optical Fiber Distribution Box for Fiber Cable

    Ask Lasest Price
    Model Number : White Distribution box
    Brand Name : OEM
    Price : $5.00/pieces 100-499 pieces
    • Product Details
    • Company Profile

    PC ABS Material 8/16 Cores Waterproof Optical Fiber Distribution Box for Fiber Cable

    Products Description

    Description

    The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.
    Specification
    PC ABS Material 8/16 Cores Waterproof Optical Fiber Distribution Box for Fiber Cable






    Application
    · Data transmission
    · Telecommunication
    · Testing equipment
    · WBN
    · Optical fiber CATV
    · LAN indoor/outdoor
    FEATURE
    1. The Box is an outdoor product for installation in aerial ( wire rope, pole or wall) or indoor networks.
    2. Has mechanical closure on main and bypass ports, compatible with cable diameters from 6mm to 15mm.
    3. 1 uncut optical cable entry, 2 branch optical cable entries.
    4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
    5. 4 trays can be installed,Each tray supports up to 24 optical splices.
    PC ABS Material 8/16 Cores Waterproof Optical Fiber Distribution Box for Fiber Cable
    Environmental requirement
    Working temperature:-40~+85°C
    Relative humidity:s85%(+30°C)
    Atmospheric pressure:70Kpa~106Kpa
    Main technical datasheet
    Insertion loss:s0.2dB
    UPC return loss:≥50dB
    APC return loss:≥60dB
    Life of insertion and extraction:>1000
    Thunder-proof technical datasheet
    The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MQ/500V(DC); IR2x10MQ/500V
    The withstand voltage between grounding device and cabinet is no less than 3000V(DC /min, no puncture, no fiashoverU>3000V
    Installation
    Wall mounting(indoor/outdoor) Pole Mounting
    Level of protection
    up to IP55
    Cable Entries
    Supporting uncut
    No. of Adaptor & Splitter
    Empty/Full Option(16 pcs adapters, 1*16 PLC Splitter, 16 pcs pigtails, heat-shrink tubes)
    Max. Capacity of Fiber
    16 fibers
    Max. Capacity of Splice
    16 cores
    Details Images
    PC ABS Material 8/16 Cores Waterproof Optical Fiber Distribution Box for Fiber Cable
    PC ABS Material 8/16 Cores Waterproof Optical Fiber Distribution Box for Fiber Cable
