    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size

    Ask Lasest Price
    Model Number : White Distribution box
    Brand Name : OEM
    Price : $5.00/pieces 100-499 pieces
    • Product Details
    • Company Profile

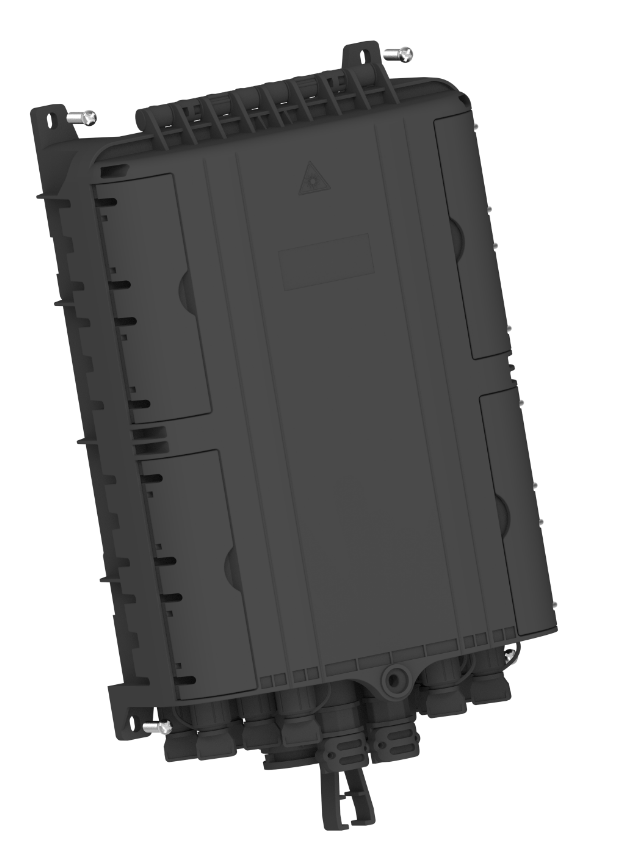

    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size

    Products Description

    Description

    The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.
    Specification
    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size






    Application
    · Data transmission
    · Telecommunication
    · Testing equipment
    · WBN
    · Optical fiber CATV
    · LAN indoor/outdoor
    FEATURE
    1. Total enclosed structure.

    2. Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging,
    protection level up to IP68.

    3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

    4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter
    installation, easy maintenance.

    5.Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

    6.Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size
    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size
    Technical Parameter:
    1. Environmental requirement
    Working temperature: -40ºC~+85ºC
    Relative humidity: ≤85% (+30ºC)
    Atmospheric pressure: 70KPa~106Kpa
    2.Main technical datasheet Insertion loss: ≤0.15dB UPC return loss: ≥50dB APC return loss: ≥60dB
    3.Thunder-proof technical datasheet The insulation resistance between the grounding device and the metal parts of the box is no
    less than 2x104 MΩ/500V (DC); IR≥2x104 MΩ/500V.
    4.The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size

    1. Wall-mounted installation

    Drill 3 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten(Pic 4).
    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size

    2.The overhead structure

    Tie the two installed on the chassis of the overhead hung on the wire, and then bolted, prevent the case fall off.
    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size

    3.Pole-mounted installation

    Fix 1 set of the pole ring to the telecom pole.
    Details Images
    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size
    FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size
