    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB

    Ask Lasest Price
    Model Number : Fast Connector
    Brand Name : Fibconet
    Price : $0.30/boxes 500-4999 boxes
    • Product Details
    • Company Profile

    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB

    FTTH High Quality Fast Connect Fuseless Fiber Optic Equipment SC/APC High Performance Fast Connectors

    Product Overview

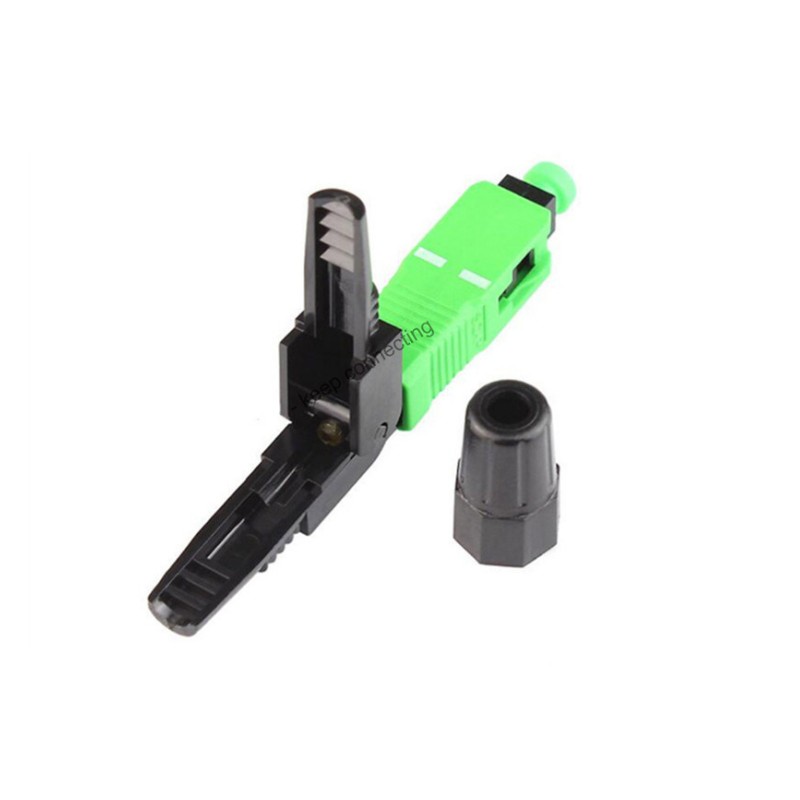

    Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system with features of high installation quality, high success rate and high reliability.
    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    Features:
    1,Compatible with both 3mm drop cable and 3x2mm flat cable
    2,Fast and easy installation (within the 90s)
    3,Adopted fiber pre-installed structure.
    4,Low insertion loss. High return loss.
    5,Pressing position use newly special structure design, without infusion, grind and waste material.
    6,Use embedded fiber type structure, ensuring the high installation quality, success rate, and quick installation.



    Application:
    --Premise environments ;
    --Connections at the desk for LAN environments;
    --Patch panels;
    --Direct equipment termination;
    --Fiber to the Subscriber (FTTx) applications;
    --Repair/replacement requirements ;
    --Equipment test leads.


    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    Parameters
    Specifications
    Tensile strength
    F>50N
    Cable diameter Range
    Drop cable 2.0*3.0/2.0*5.0mm
    Operating Temperature
    -20 ~ +75℃
    Length
    55mm
    Storage Temperature
    -40 ~ +85℃
    Insertion Loss
    AVG
    MAX

    Return Loss
    ≤0.3dB
    ≤0.5dB

    UPC
    APC

    ≥50dB
    ≥55dB
    Temperature cycle
    AVG≤0.3DB, MAX ≤0.5 DB
    Repeatability(500 MatingTimes)
    AVG≤0.3DB,MAX ≤0.5 DB
    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    FTTH Fast Connect Fuseless Fiber Optic Equipment with Return Loss dB UPC≥ 50dB APC≥ 55dB
    1. Are you a manufacturer or trade company?

    We are the manufacturer with nearly 20 years' history.

    2. What is your fiber brand?

    Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

    3. What is your main product?

    Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
    Box, except that, we have very good prices for part of the fiber tools!

    4. How can we place order?

    After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
    (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
    goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
    costs!

    5. What is the quality of your product?

    All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

    6. How do you arrange the shipping?

    Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
    office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
    ship them according to your express account or ship them by our agent company, the delivery time is about four days).
    Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

    7. How can you guarantee the delivery time?

    1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
    experience. We can regulate the penalty clause in the contract for the late delay.

    8. What's your best price for your passive fiber optic product?

    Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

    9. What is your quality control for your fiber optic product?

    1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
    satisfy exporting quality level demand.
    2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
    physical test, and optical test. They are 100% tested.
    3. Optical Test. Our products are strictly tested following IEC and ITU standards.
    4. We have 30% spot test by Quality Assurance Department after the products are finished.

    10. Why choose FIBCONET Fiber Optic to cooperate?

    1. We have first-class production line and strict quality management system.
    2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
    3. We can provide the most competitive price to meet your budget.
    4. We also design and innovate new products based on our rich experience.
    5. We have professional team to provide comprehensive one-stop service for you.

    Please always feel free to contact us for any questions, it's our honor to be in service of you!
