    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH

    Ask Lasest Price
    Model Number : fiber optic Optical distribution box
    Brand Name : OEM Optical distribution box
    Price : $5.00/boxes 500-1999 boxes
    • Product Details
    • Company Profile

    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH

    Fibconet FTTH High Quality FSD 8 cores junction box fiber optic equipment Splitting waterproof distribution box
    VR
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    Products Description

    Overview:

    This product integrates fusion splicing, light splitting, and wiring. lt is suitable for terminal access onthe user side and connected with optical communication equipment, Through adapters, optical jumpersare used to lead out optical signals to achieve optical distribution. lt is also suitable for The protectiveconnection of the optical cable and pigtail. ln addition, it can also be spliced with home cable to realizethe straight-through connection of the optical cable. box fttx CTO box fttx
    Specification
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH





    Optical distribution box Product Feature: 3 different structural forms inside, user can choose plug-in splitter or pipe-type splitter;

    The box body adopts anti-theft screws and is equipped with a special key;

    Can be installed on a wall or pole.




    Optical distribution box Technical indicators:
    Optical fiber curvature radius: 240mm
    Additional loss of fiber tray: <0.01dB
    Working temperature: - 20C+60C
    Anti-side pressure: 22000N/10cm
    lmpact resistance:220N.m
    Protection level: IP65
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    Product model.
    FDB-0432A-1
    Size: W*D*H (mm)
    177*276*106
    Cable diameter (mm )
    7~16
    Cable inlet/ outlet
    4 / 32
    Splitter type
    Steel pipe
    Maximum splitting
    1: 8 (2pcs) &1: 16 (1pcs)
    Fiber capacity (core)
    16 (can beexpanded to 40)

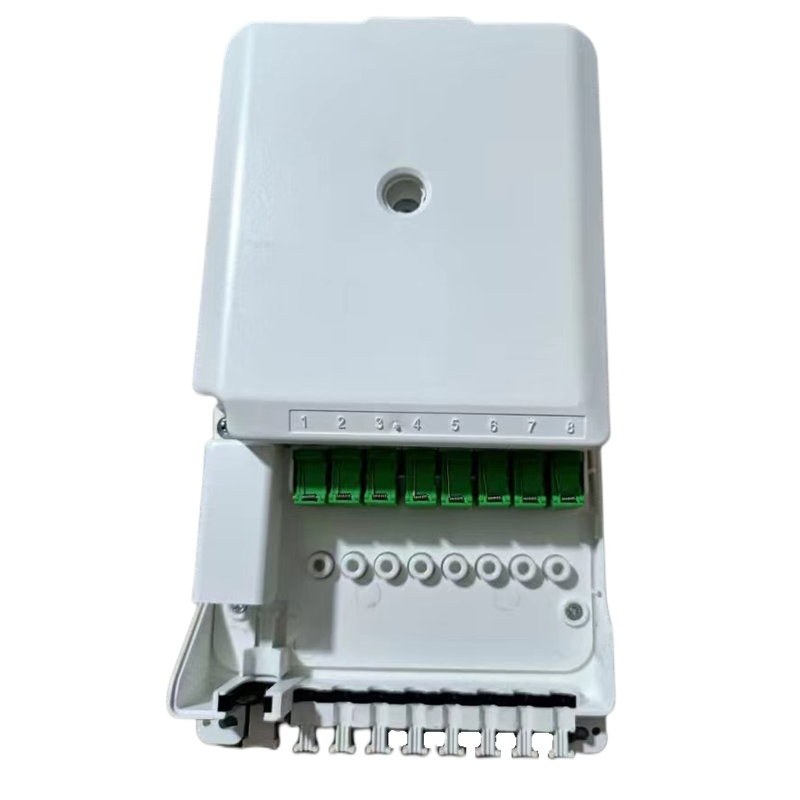

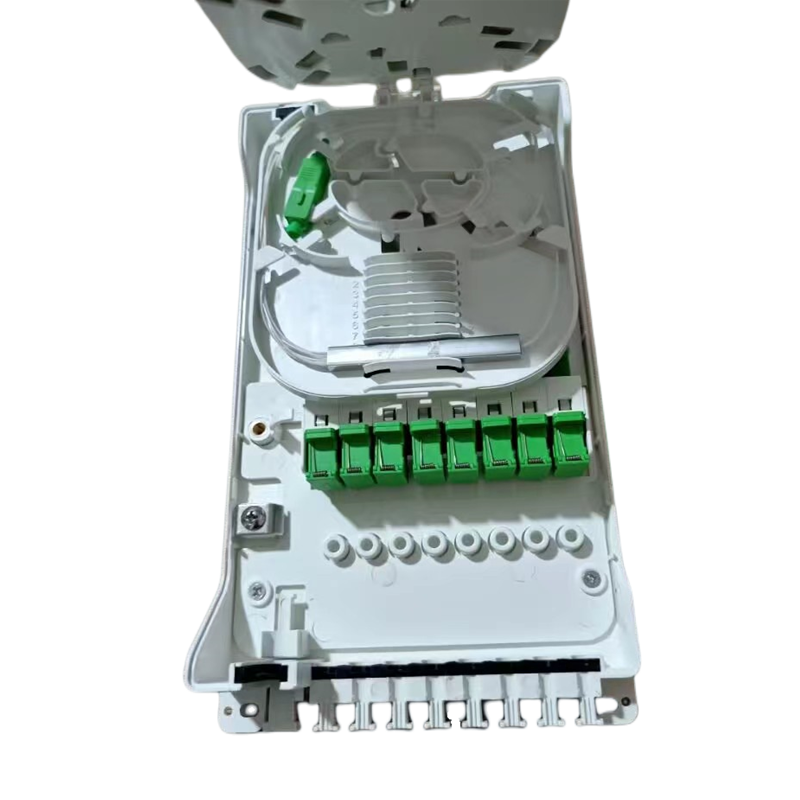

    Details Images
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH

    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    Our other products:
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    FSD 8 Cores Junction Box Fiber Optic Splitting Waterproof Distribution Box for FTTH
    1. Are you a manufacturer or trade company?

    We are the manufacturer with nearly 20 years' history.

    2. What is your fiber brand?

    Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

    3. What is your main product?

    Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
    Box, except that, we have very good prices for part of the fiber tools!

    4. How can we place order?

    After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
    (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
    goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
    costs!

    5. What is the quality of your product?

    All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

    6. How do you arrange the shipping?

    Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
    office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
    ship them according to your express account or ship them by our agent company, the delivery time is about four days).
    Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

    7. How can you guarantee the delivery time?

    1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
    experience. We can regulate the penalty clause in the contract for the late delay.

    8. What's your best price for your passive fiber optic product?

    Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

    9. What is your quality control for your fiber optic product?

    1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
    satisfy exporting quality level demand.
    2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
    physical test, and optical test. They are 100% tested.
    3. Optical Test. Our products are strictly tested following IEC and ITU standards.
    4. We have 30% spot test by Quality Assurance Department after the products are finished.

    10. Why choose FIBCONET Fiber Optic to cooperate?

    1. We have first-class production line and strict quality management system.
    2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
    3. We can provide the most competitive price to meet your budget.
    4. We also design and innovate new products based on our rich experience.
    5. We have professional team to provide comprehensive one-stop service for you.

    Please always feel free to contact us for any questions, it's our honor to be in service of you Features!
