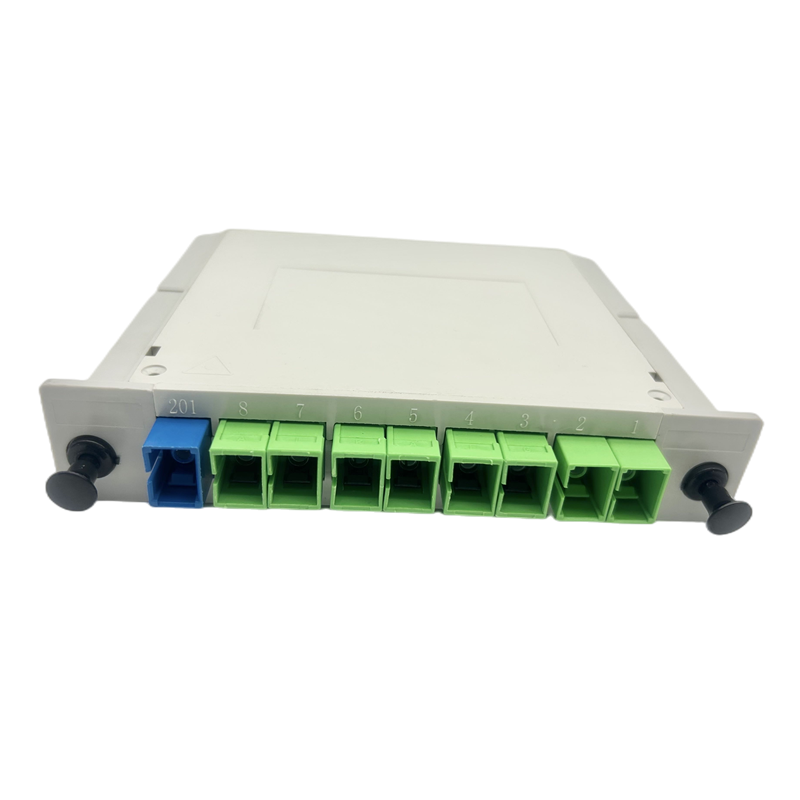

    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector

    Ask Lasest Price
    Model Number : PLC splitter
    Brand Name : fibconet
    Price : $2.55/pieces 500-4999 pieces
    • Product Details
    • Company Profile

    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector

    VR
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FTTH fiber optic equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A fiber optic splitter PLC splitter with connector
    Product details
    Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica
    optical waveguide technology. It is used to split a fiber optic beam into several beams at a certain splitting ratio. It is an
    important passive device in passive optical network.
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector




    APPLICATIONS:

    · FTTx
    · Cable television (CATV)
    · Local area networks (LAN)
    · Test equipment
    · Passive optical networks(PON)
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FEATURE

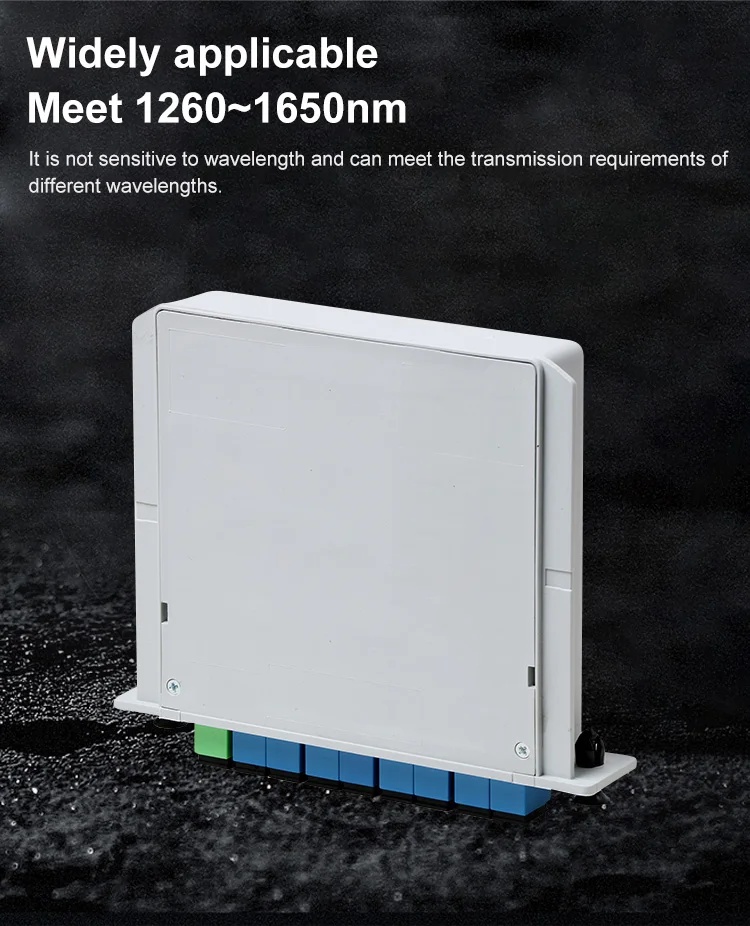

    · Wide operating wavelength range: from 1260nm to 1650nm
    · Wide Operating Temperature: from -40ºC to 85ºC
    · Good channel-to-channel uniformity
    · High reliability and small size
    · Adopt high-strength stainless steel, pass the salt spray test
    · Adopt 100% new raw material, ROHS compliance
    · Low Insertion loss&Low PDL Compact Design
    1xN PLC Splitter Specification
    Operating Wavelength(nm)
    1260~1650
    Fiber Type
    G657A1 or as customers' order
    Port Configuration
    1x2
    1x4
    1x8
    1x16
    1x32
    1x64
    1x128
    Insertion Loss (dB)
    3.8/4.0
    7.1/7.3
    10.2/10.5
    13.5/13.7
    16.5/16.9
    20.5/21.0
    23.8/24.2
    Loss Uniformity (dB)
    0.4
    0.6
    0.8
    1.2
    1.5
    2.0
    2.5
    Polarization Dependent Loss(dB)
    0.2
    0.2
    0.2
    0.25
    0.3
    0.35
    0.4
    Wavelength Dependent Loss(dB)
    0.3
    0.3
    0.3
    0.5
    0.5
    0.5
    0.5
    Temperature Dependent Loss (-40~85 ) (dB)
    0.4
    0.4
    0.4
    0.5
    0.5
    0.5
    0.5
    Return Loss (dB)
    55/50
    Operating Temperature
    -40~+85
    Directivity (dB)
    ≥ 55
    Storage Temperature
    -40~+85
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    FTTH Fiber Optic Equipment 1x4 1x8 1x16 1X32 SC APC UPC G657A PLC Splitter with Connector
    1. Are you a manufacturer or trade company?

    We are the manufacturer with nearly 20 years' history.

    2. What is your fiber brand?

    Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

    3. What is your main product?

    Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
    Box, except that, we have very good prices for part of the fiber tools!

    4. How can we place order?

    After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
    (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
    goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
    costs!

    5. What is the quality of your product?

    All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

    6. How do you arrange the shipping?

    Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
    office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
    ship them according to your express account or ship them by our agent company, the delivery time is about four days).
    Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and
    finishes the shipping.

    7. How can you guarantee the delivery time?

    1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
    experience. We can regulate the penalty clause in the contract for the late delay.

    8. What's your best price for your passive fiber optic product?

    Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
    time.

    9. What is your quality control for your fiber optic product?

    1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
    satisfy exporting quality level demand.
    2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
    physical test, and optical test. They are 100% tested.
    3. Optical Test. Our products are strictly tested following IEC and ITU standards.
    4. We have 30% spot test by Quality Assurance Department after the products are finished.

    10. Why choose FIBCONET Fiber Optic to cooperate?

    1. We have first-class production line and strict quality management system.
    2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
    3. We can provide the most competitive price to meet your budget.
    4. We also design and innovate new products based on our rich experience.
    5. We have professional team to provide comprehensive one-stop service for you.

    Please always feel free to contact us for any questions, it's our honor to be in service of you!
