    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN

    Ask Lasest Price
    Model Number : Box Distribution
    Brand Name : OEM
    Price : $5.00/pieces 500-1999 pieces
    • Product Details
    • Company Profile

    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN

    Products Description

    Description

    Box Distribution,the equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building. CTO box fttx CTO box fttx
    Specification
    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN






    Box Distribution Application
    · Data transmission
    · Telecommunication
    · Testing equipment
    · WBN
    · Optical fiber CATV
    · LAN indoor/outdoor
    Box Distribution Features
    · Protection Level: IP65.
    · Integrated with splice cassette and cable management rods.
    · Manage fibers in a reasonable fiber radius condition.
    · Panel for accommodating SC optical adapters.
    · Easy to maintain and extend the capacity.
    · Fiber bend radius control more than 40mm.
    · Suitable for the fusion splice or mechanical splice.
    · 1*16/1/8 Splitter can be installed as an optioin.
    · Efficient cable management.
    · 16 ports cable entrance for feeder cable and drop cable.
    · Equipment with sealing locks.
    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN
    Environmental requirement
    Working temperature:-50~+850C
    Relative humidity:s85%(+30°C)
    Atmospheric pressure:70Kpa~106Kpa
    Main technical datasheet
    Insertion loss:s0.2dB
    UPC return loss:250dB
    APC return loss:260dB
    Life of insertion and extraction:>1000
    Thunder-proof technical datasheet
    The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MQ/500V(DC); IR22x104MQ/500V
    The withstand voltage between grounding device and cabinet is no less than 3000V(DC /min, no puncture, no fiashoverU>3000V
    Installation
    Wall mounting(indoor/outdoor) Pole Mounting
    Level of protection
    P55/IP65
    Cable Entries
    Supporting uncut
    No. of Adaptor & Splitter
    Empty/Full Option(16 pcs adapters, 1*16 PLC Splitter, 16 pcs pigtails, heat-shrink tubes)
    Max. Capacity of Fiber
    16 fibers
    Max. Capacity of Splice
    16 cores
    Details Images
    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN

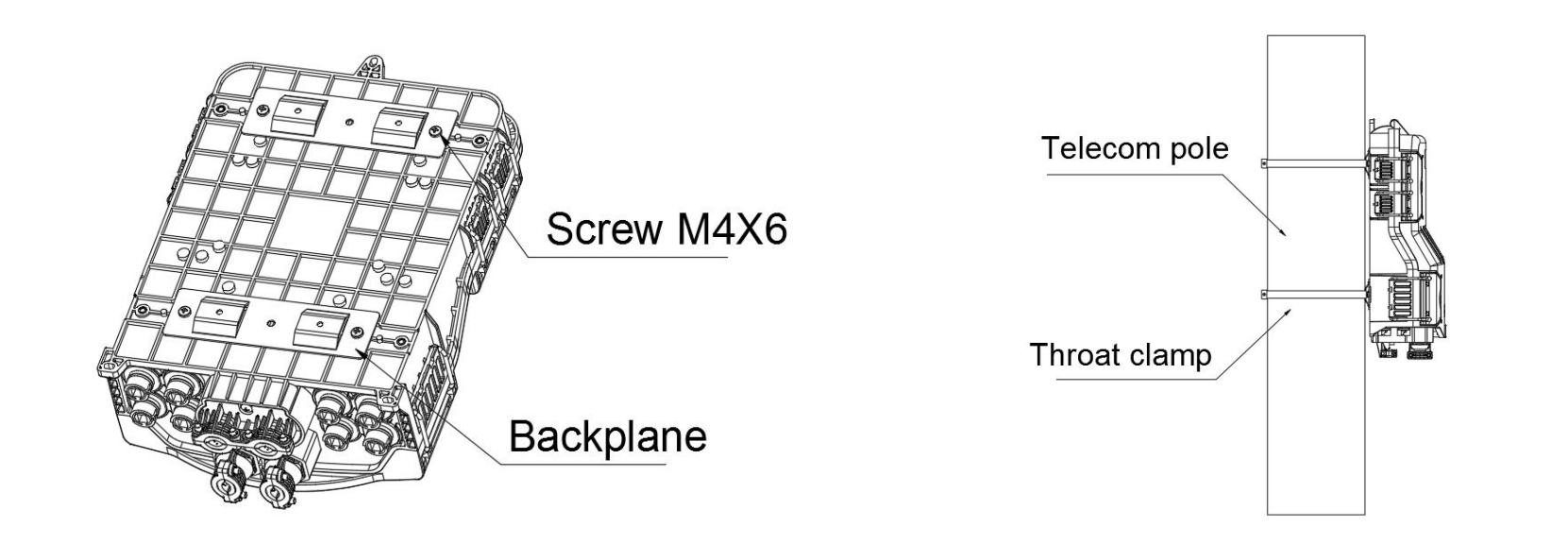

    Terminal box Fttx Pole-mounted installation:

    Install the backplane on the box with M4×6 screws. Fix 1 set of the easy pole ring to the telecom pole CTO box fttx
    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN
    Terminal box fttx Hanging wire installation

    ---Take out the Hanging Kit from the Accessory Bag, install the hangers to the Box by M4 Screws Hang the Box on the line with the two hooks. CTO box fttx
    ---Screw the M6 Screws on the hooks to lock the hangers, check if everything is tight after operation. CTO box fttx
    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN
    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN
    Indoor/Outdoor IP65 ABS Optic Fiber Optical Box Distribution For FTTH 320*210*100 LAN
