    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install

    Ask Lasest Price
    Model Number : Wall Mounted Fiber Optic Distribution Box
    Brand Name : OEM
    Price : $5.00/pieces 500-1999 pieces
    • Product Details
    • Company Profile

    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install

    Products Description

    Distribution Box Description

    The Wall Mounted Fiber Optic Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
    The fiber splicing, splitting, distribution can be done in this distribution box, and meanwhile it provides solid protection and management for the FTTX network building.
    Specification
    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install






    Fiber Optic Distribution Box Application
    · Data transmission
    · Telecommunication
    · Testing equipment
    · WBN
    · Optical fiber CATV
    · LAN indoor/outdoor
    Fiber Optic Distribution Box FEATURE
    · Protection Level: IP65.
    · Integrated with splice cassette and cable management rods.
    · Manage fibers in a reasonable fiber radius condition.
    · Panel for accommodating SC optical adapters.
    · Easy to maintain and extend the capacity.
    · Fiber bend radius control more than 40mm.
    · Suitable for the fusion splice or mechanical splice.
    · 1*16/1/8 Splitter can be installed as an optioin.
    · Efficient cable management.
    · 16 ports cable entrance for feeder cable and drop cable.
    · Equipment with sealing locks.
    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install
    Environmental requirement
    Working temperature:-50~+850C
    Relative humidity:s85%(+30°C)
    Atmospheric pressure:70Kpa~106Kpa
    Main technical datasheet
    Insertion loss:s0.2dB
    UPC return loss:250dB
    APC return loss:260dB
    Life of insertion and extraction:>1000
    Thunder-proof technical datasheet
    The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MQ/500V(DC); IR22x104MQ/500V
    The withstand voltage between grounding device and cabinet is no less than 3000V(DC /min, no puncture, no fiashoverU>3000V
    Installation
    Wall mounting(indoor/outdoor) Pole Mounting
    Level of protection
    IP55/IP65
    Cable Entries
    Supporting uncut
    No. of Adaptor & Splitter
    Empty/Full Option(16 pcs adapters, 1*16 PLC Splitter, 16 pcs pigtails, heat-shrink tubes)
    Max. Capacity of Fiber
    16 fibers
    Max. Capacity of Splice
    16 cores

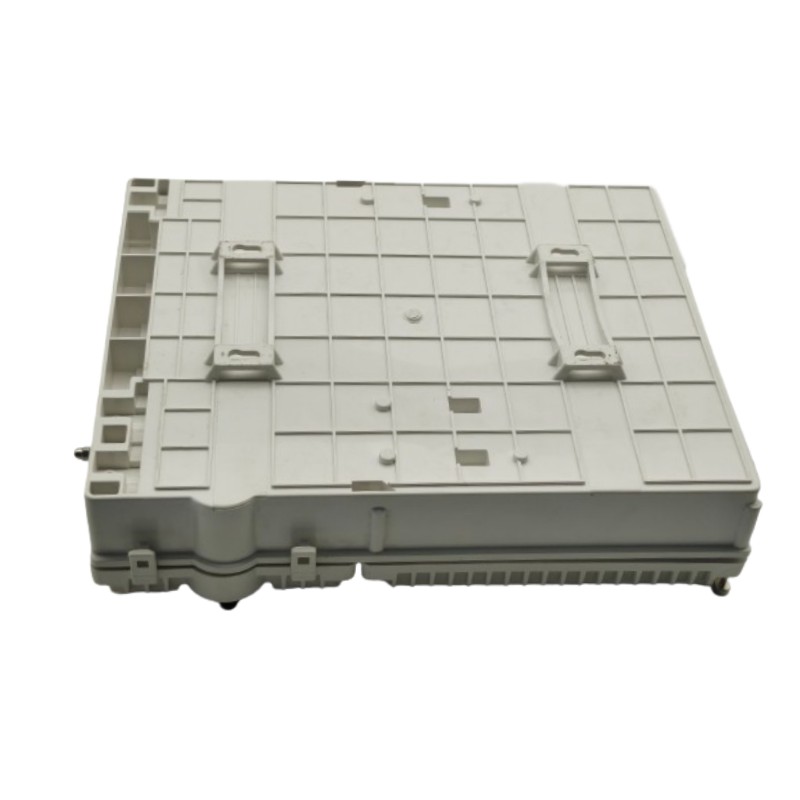

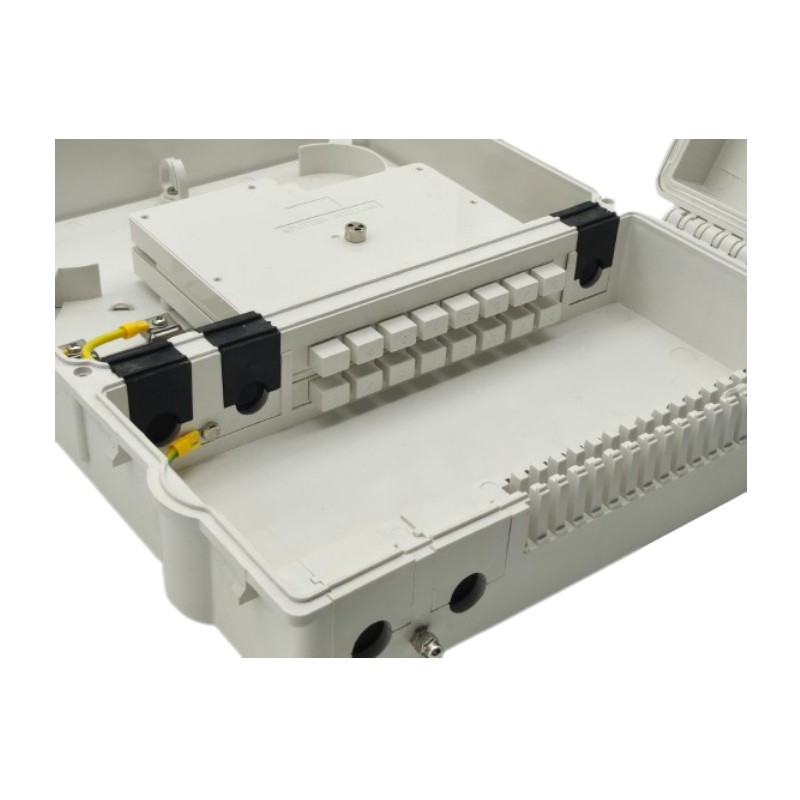

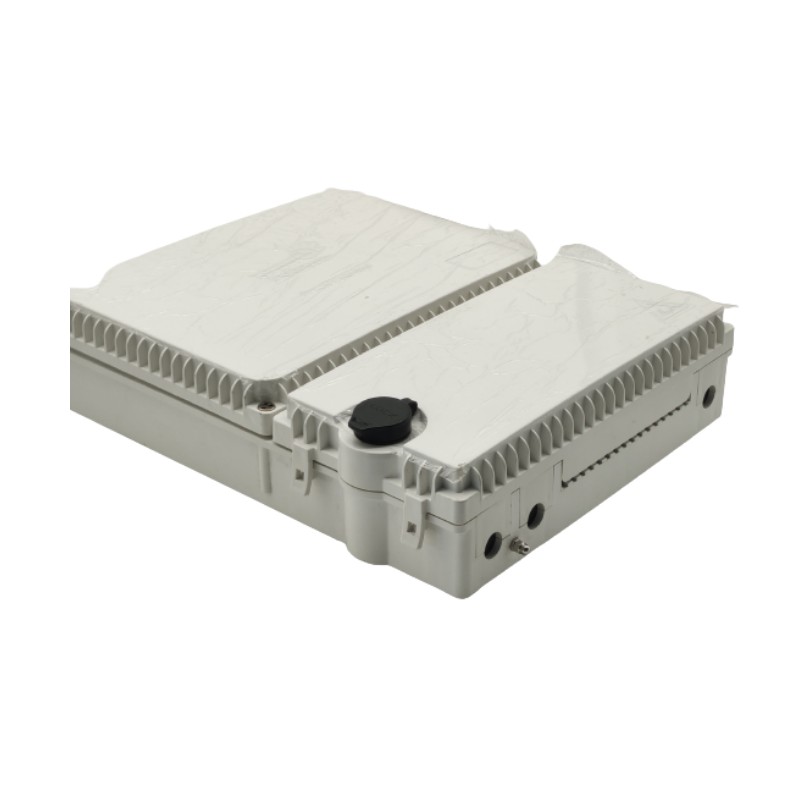

    Details Images
    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install
    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install
    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install
    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install
    16 24 Core Fiber Optic Distribution Box for FTTx ISO Certified and Easy to Install
