    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures

    Ask Lasest Price
    Model Number : Splice Closure
    Brand Name : FIBCONET
    Supply Ability : 2000 Piece/Pieces per Month Fiber hub Box
    Price : $40.00 - $80.00/pieces
    • Product Details
    • Company Profile

    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures

    FTTH fiber optic box 8/12/24 port FTTX fiber optic cable terminal box IP68 outdoor waterproof fiber optic Splice Closures

    Product Introduction

    Waterproof outdoor use of IP MPO 12/24 core jumper for tower type MST junction box The IP MPO 12/24 waterproof fiber optic patch cord is an ideal design for outdoor fiber optic cable applications. This product can meet the requirements of FTTA (Fiber to Antenna) program under outdoor environmental conditions.
    feature

    -Easily add/install jumper cables for future expansion; -Low insertion loss and additional loss; -Attenuation height; -Flexibility with small bending radius and excellent cable routing performance; -The geometric shape and quality of the end face are superior to IEC and Telcordia standards; -The materials in jumper cables are all-weather and UV resistant; -Mechanical performance: IEC 61754-20 standard; -Compliant with RoHs and REACH materials.
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures
    application



    -Multi functional outdoor;
    -Used for the connection between the distribution box and RRH (RRU); -Deployed in the remote radio head cellular tower application.
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures

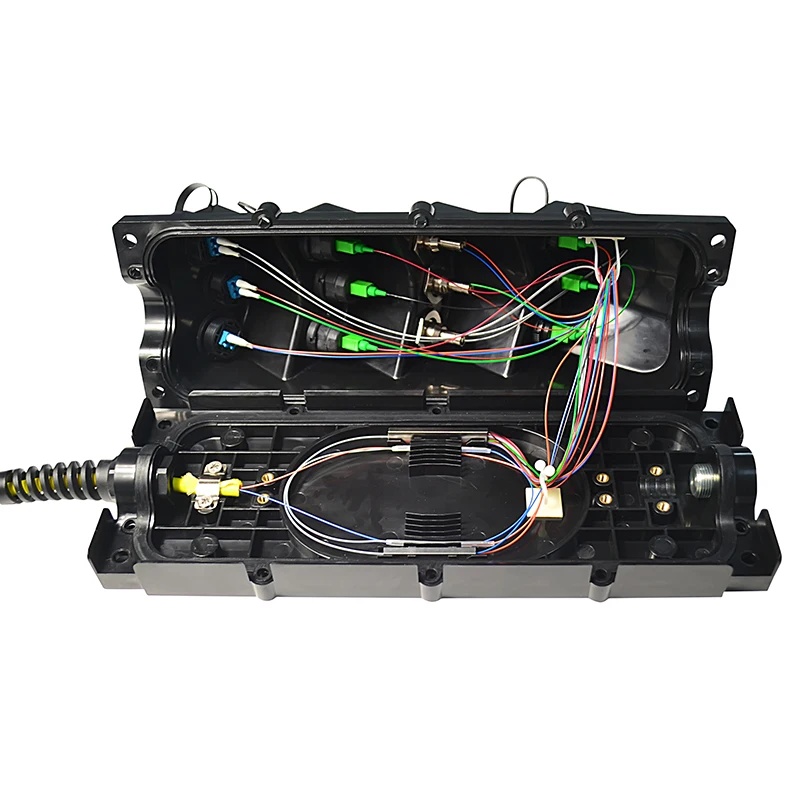

    FTTX storage module application: FTTH field Traditional solutions use ONU or FDH (Optical Network Unit/Fiber Distribution Hub), which can be used in luxury homes and villas when the trunk cable reaches the outside. The FTTX housing can replace ONU or FDH because it has fiber optic distribution function. Inside, it can fix 2-4pcs of 1 * 8 or 1 * 16 PLCs and place 24pcs of fiber optic connector protective sleeves. After matching with the 1-48F IP67 pre - assemble waterproof connectors, the FTTX housing can directly connect to every mansion and villa or low-voltage silo. It can be fixed outside luxury villas or installed with a pull rod. The FTTX shell can reduce signal loss by having fewer connection nodes. In front of the factory - the FTTX casing has been assembled, and it does not require highly skilled operators due to the lack of fiber optic connector operation. Installation efficiency can be increased by 40%.
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures
    FTTA field Traditionally, remote radio units (RRUs) and building baseband units (BBUs) are connected through fiber optic cables in a formed star network topology. Each RRU requires a duplex outdoor cable to connect to the BBU. Installation will require more time and the cost will be high. The FTTX chassis works as an aggregation/tagging box, linking RRU and BBU together. From BBU to FTTX casing, only one multi fiber hybrid cable is needed. Then the FTTX casing divides the optical fibers into each RRU assembled waterproof cable assembly using IP67 pre. RRU can obtain power through the power connector assembled on the FTTX housing. It can avoid unnecessary repetition.
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures
    Trunk cable connection Due to the limited length of each drum cable, trunk cables require frequent fusion welding. So the connection point is weak and requires good protection. When the trunk cable enters the FTTX casing, it will be sealed and fixed with a torsion resistant cable gland (plastic or metal type). For cables with an outer diameter of 5mm and 14mm, the FTTX casing has different accessories. Twisting the gland can release stress when the trunk cable is bent and protect the optical fiber from breakage. Inside the FTTX casing, the main cable and strength components are fixed with fasteners to ensure that the box can withstand a long-term tensile force of 1200N. Splicing protective sleeves (up to 24) and PLCs (up to 2) can be fixed to the body, making it very easy to separate the fiber optic of the FTTX casing. The anti slip design on the base ensures that the FTTX casing is securely fixed to the wires/poles.
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures

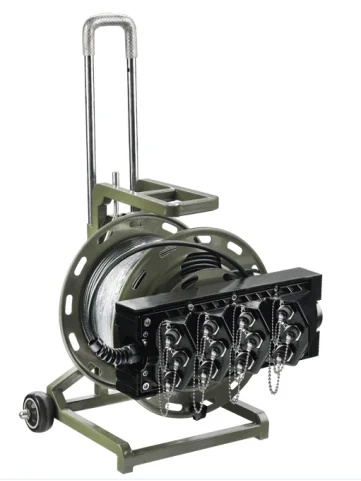

    Exploration or military communication During exploration or military communication, cables will often be replayed. Normal connectors and cables cannot stand frequently and undergo high intensity pulling and reuse. Within the FTTX casing, armored cables and strength components are fixed with fasteners in the following ways to ensure that the box can withstand a long-term tensile force of 1200N. It is very suitable for on-site use, especially for communication in star networks. High strength materials and curved interface design ensure that the FTTX casing operates abnormally when subjected to impact.
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures
    Specification:
    L*W*H
    365*137*90mm without cover, 375*142*120mm with cover
    Ingress protection
    IP67
    Temperature range
    -40 ~ + 80 °
    Cable strength members
    Armored or unarmoured
    Cable type
    Mixed or unmixed
    Round cable outer diameter
    5.0 mm to 14 mm
    Flat cable size
    4.6*8.9mm
    Cable sheath material
    LSZH, TPU or PE
    Bend radius
    20D
    Cable compressive performance
    200N/cm long-term
    tensile strength
    1200N long-term
    UV resistant
    ISO 4892-3
    Fire rating
    UL 94-V0
    Number of PLCs
    1-2 pcs
    Number of protective cases
    1-24 pcs
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures
    FTTH Fiber Optic Box 8/12/24 Port FTTX Optical Splice Closure Terminal Box IP68 Outdoor Waterproof Fiber Optic Splice Closures
    1. Are you a manufacturer or trade company?

    We are the manufacturer with nearly 20 years' history.

    2. What is your fiber brand?

    Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

    3. What is your main product?

    Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
    Box, except that, we have very good prices for part of the fiber tools!

    4. How can we place order?

    After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
    (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
    goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
    costs!

    5. What is the quality of your product?

    All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

    6. How do you arrange the shipping?

    Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
    office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
    ship them according to your express account or ship them by our agent company, the delivery time is about four days).
    Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and
    finishes the shipping.

    7. How can you guarantee the delivery time?

    1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
    experience. We can regulate the penalty clause in the contract for the late delay.

    8. What's your best price for your passive fiber optic product?

    Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
    time.

    9. What is your quality control for your fiber optic product?

    1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
    satisfy exporting quality level demand.
    2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
    physical test, and optical test. They are 100% tested.
    3. Optical Test. Our products are strictly tested following IEC and ITU standards.
    4. We have 30% spot test by Quality Assurance Department after the products are finished.

    10. Why choose FIBCONET Fiber Optic to cooperate?

    1. We have first-class production line and strict quality management system.
    2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
    3. We can provide the most competitive price to meet your budget.
    4. We also design and innovate new products based on our rich experience.
    5. We have professional team to provide comprehensive one-stop service for you.

    Please always feel free to contact us for any questions, it's our honor to be in service of you!
