    1 Adaptor Powered FTTB Fusion Splicer for Ribbon Fiber Cladding of SM/MM/DS/NZDS

    Ask Lasest Price

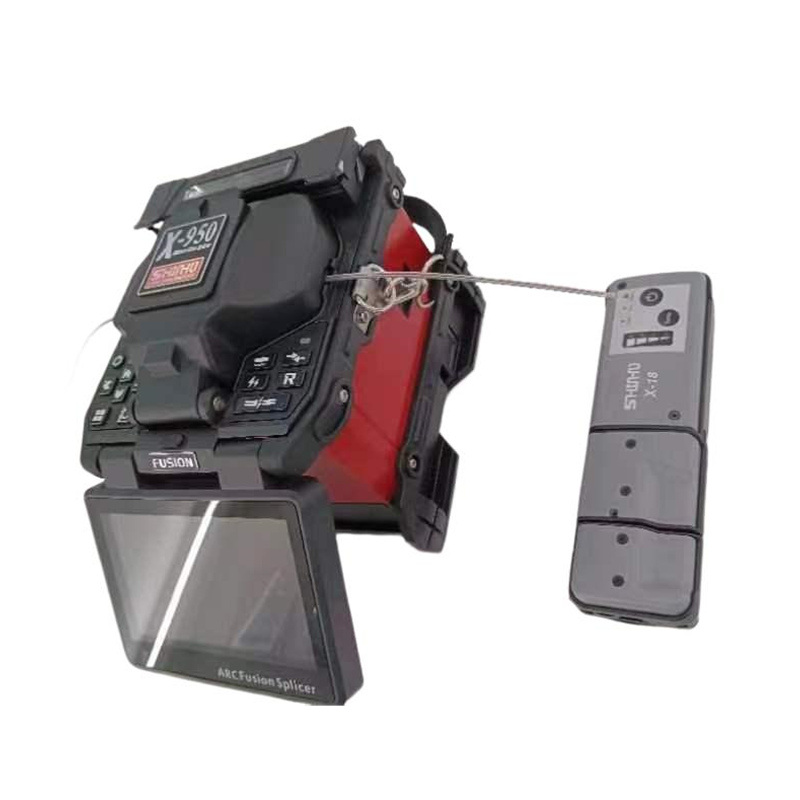

    Model Number : X-950 FTTB Fusion Splicer
    Brand Name : FIBCONET
    Supply Ability : 2000 Piece/Pieces per Month
    Price : $3,428.00/pieces 1-499 pieces
    • Product Details
    • Company Profile

    1 Adaptor Powered FTTB Fusion Splicer for Ribbon Fiber Cladding of SM/MM/DS/NZDS

    DESCRIPTION

    This FTTB Fusion Splicer machine is mainly used to connect optical fibers with high performance and reliable quality, which can be further connected with ordinary optical fiber cables, jumpers, multiple-mode, and dispersion-shifted quartz optical.
    1 Adaptor Powered FTTB Fusion Splicer for Ribbon Fiber Cladding of SM/MM/DS/NZDS



    Designed forFTTB Fusion Splicer

    · FTTH
    · FTTB
    · Security system
    · Field construction
    · Emergency repair
    · MAN construction
    · Underground operation
    · Teaching and scientific research

    FTTB Fusion Splicer FEATURES
    ※ Applicable to 2-12 ribbon fiber splicing ※ Accurate alignment, world standard fusion loss ※ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s ※ Applicable to different types fibers (SM/MM/DS/NZDS) ※ Ruggedized body, waterproof, anti-dust, anti-shock ※ Pluggable Li-battery, support separate charging ※ Easy to maintenance, easy to replace the electrodes ※ USB port for software upgrading, records exporting ※ Support 4000/100 groups fusion records/fusion images ※ Comply with CE/Rohs international standard
    1 Adaptor Powered FTTB Fusion Splicer for Ribbon Fiber Cladding of SM/MM/DS/NZDS
    Alignment method
    Clad to clad
    Applicable fiber
    SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Typical splice loss
    SM: 0.05dB;MM: 0.02dB;DS: 0.08dB;NZDS: 0.08dB
    Operation mode
    Manual/ Automatic
    Viewing display
    Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
    Battery capacity
    5200mAh Li-battery, 150 cycles splicing and heating
    Power supply
    Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Tension test
    1.8~2.2N
    Terminals
    USB 2.0 port, for software upgrading, records exporting
    Operating
    Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃~+50℃;Wind:max 15m/s
    Dimension/Weight
    155mm (L)×144mm (W)×155mm (H) /2.3kg (including battery)
    1 Adaptor Powered FTTB Fusion Splicer for Ribbon Fiber Cladding of SM/MM/DS/NZDS
    1 Adaptor Powered FTTB Fusion Splicer for Ribbon Fiber Cladding of SM/MM/DS/NZDS
    1 Adaptor Powered FTTB Fusion Splicer for Ribbon Fiber Cladding of SM/MM/DS/NZDS
    1 Adaptor Powered FTTB Fusion Splicer for Ribbon Fiber Cladding of SM/MM/DS/NZDS
