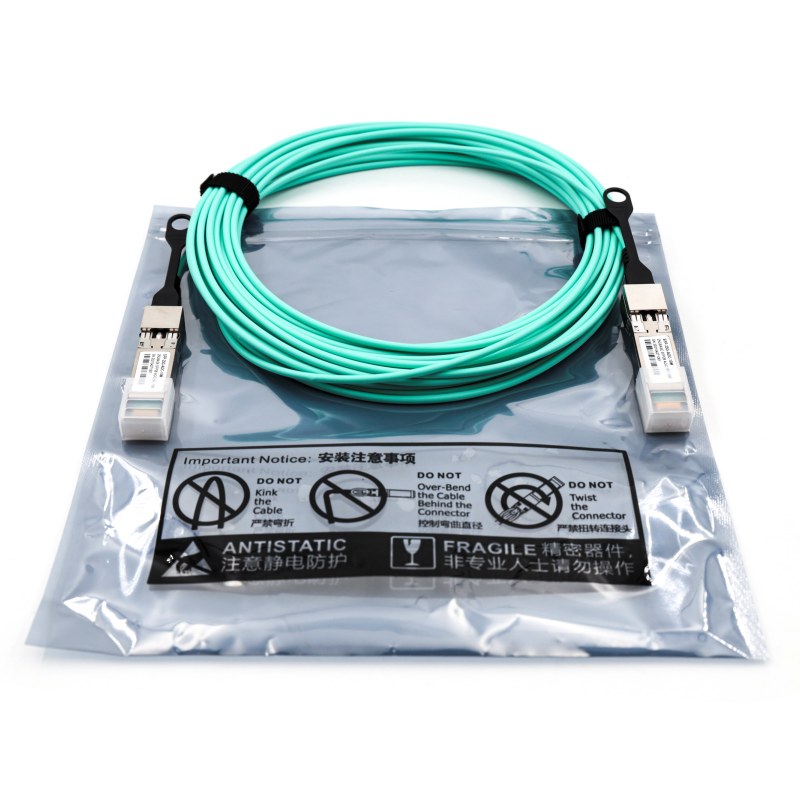

    25Gbps SFP28 SFP Ethernet Data Center 70m Om3 100m Om4 Aoc Patch Cord for -30 to 0dBm

    Ask Lasest Price
    Model Number : AOC Patch Cord
    Brand Name : Fibconet, OEM
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $0.22/pieces 100-999 pieces
    • Product Details
    • Company Profile

    25Gbps SFP28 SFP Ethernet Data Center 70m Om3 100m Om4 Aoc Patch Cord for -30 to 0dBm

    Products Description
    SFP28 Active Optical Cable (AOC) is a 25Gbps solution to25G Ethernet, and datacenter. The integrated cable transmits 25Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.

    StandardCompliant with SFF-8431 and SFF-8432 Compliant with SFF-8472 Rev 10.2 RoHS Compliant
    25Gbps SFP28 SFP Ethernet Data Center 70m Om3 100m Om4 Aoc Patch Cord for -30 to 0dBm

    Features

    Electrical interface compliant to SFF-8431 850nm VCSEL laser and PIN photo-detector Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF Digital diagnostics functions are available via the I2C interface Operating case temperature Commercial: 0°C to +70 °C +3.3V single power supply Power consumption less than 1W RoHS compliant Password protection for A0h and A2h
    25Gbps SFP28 SFP Ethernet Data Center 70m Om3 100m Om4 Aoc Patch Cord for -30 to 0dBm

    Applications

    ●25GBASE-SR Ethernet ●Servers,switches,storage and host card adapters
    Specification
    Parameter
    Symbol
    Min
    Max
    Unit
    Centre Wavelength
    λc
    840
    860
    Receiver Sensitivity
    Sen
    -11
    dBm
    Receiver Overload
    Psat
    0.5
    dBm
    LOS De-Assert
    LOSD
    -15
    dBm
    LOS Assert
    LOSA
    -30
    dB
    Receiver Reflectance
    Rrx
    -12
    dB
    Data Output Swing Differential
    Vout
    300
    800
    mV
    Rx-Los Fault
    Vlf
    2.0
    VccHOST
    V
    Rx-Los Normal
    Vln
    0
    0+0.8
    V
    Output rise and fall time
    Tr, Tf
    28
    ps
    Mechanical Dimensions
    25Gbps SFP28 SFP Ethernet Data Center 70m Om3 100m Om4 Aoc Patch Cord for -30 to 0dBm
    Application Cautions
    6.1. ESD This transceiver is specified as ESD threshold 1kV for high speed pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment. 6.2. LASER SAFETY This is a Class 1 Laser Product according to IEC 60825-1:1993:+A1:1997+A2:2001. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated
    25Gbps SFP28 SFP Ethernet Data Center 70m Om3 100m Om4 Aoc Patch Cord for -30 to 0dBm
    25Gbps SFP28 SFP Ethernet Data Center 70m Om3 100m Om4 Aoc Patch Cord for -30 to 0dBm
    1. Are you a manufacturer or trade company?

    We are the manufacturer with nearly 20 years' history.

    2. What is your fiber brand?

    Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

    3. What is your main product?

    Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
    Box, except that, we have very good prices for part of the fiber tools!

    4. How can we place order?

    After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
    (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
    goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
    costs!

    5. What is the quality of your product?

    All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

    6. How do you arrange the shipping?

    Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
    office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
    ship them according to your express account or ship them by our agent company, the delivery time is about four days).
    Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

    7. How can you guarantee the delivery time?

    1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
    experience. We can regulate the penalty clause in the contract for the late delay.

    8. What's your best price for your passive fiber optic product?

    Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

    9. What is your quality control for your fiber optic product?

    1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
    satisfy exporting quality level demand.
    2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
    physical test, and optical test. They are 100% tested.
    3. Optical Test. Our products are strictly tested following IEC and ITU standards.
    4. We have 30% spot test by Quality Assurance Department after the products are finished.

    10. Why choose FIBCONET Fiber Optic to cooperate?

    1. We have first-class production line and strict quality management system.
    2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
    3. We can provide the most competitive price to meet your budget.
    4. We also design and innovate new products based on our rich experience.
    5. We have professional team to provide comprehensive one-stop service for you.

    Please always feel free to contact us for any questions, it's our honor to be in service of you
