    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor

    Ask Lasest Price
    Model Number : DAC Patch Cord
    Brand Name : Fibconet, OEM
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $0.22/pieces 100-999 pieces
    • Product Details
    • Company Profile

    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor

    Products Description
    IH’s 40G QSFP-4*SFP High Speed 40G QSFP+ to 4×10G SFP+ Direct Attach Cable copper cable assemblies are a low cost alternative for short reach 4X applications. They are designed to be fully compatible in form factor and optical/electrical connections according to the QSFP Multi-Source Agreement.
    QSFP+ connectors provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of aggregate 40Gbps as specified for QSFP+. These interconnects have three times the density of SFP+ interconnects (MSA) and have been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
    QSFP+ cable assemblies are hot swappable and the programmed EEPROM signature enables the host to differentiate
    between a copper cable assembly and a fiber optic module.
    Low power consumption assists in making the passive copper cable assembly an economic solution for withinrack, or rack-to-rack applications.

    DAC Patch Cord Standard * Compliant with electrical standards IEEE 802.3ba
    * Compliant with mechanical standard SFF-8436 and SFF-8431
    * Compliant with EEPROM standard SFF-8472
    * RoHS Compliant

    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor

    DAC Patch Cord Features

    * Passive Copper (Paddle cards plus Copper cable) (Cable Length: 1~5m)
    * 4-Channel Full Passive Copper Cable Transceiver
    * QSFP+ conforms to the Small Form Factor SFF-8436 and SFF-8431
    * Support for multi-gigabit data rates up to 10.5Gbps
    * Data rates backward compatible to 1Gbps
    * Maximum aggregate data rate: 40 Gbps (4 x 10Gbps)
    * Hot-Density QSFP 38-PIN footprint
    * I/O Connector designed for high speed differential signal applications
    * Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
    * Compatible with industry standard SFP cages +Switches
    * EEPROM signature can be customized.
    * Temperature Range: 0~ 70 °C
    * RoHS-6 Compliant

    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor

    DAC Patch Cord Applications

    * 10G/40G Ethernet
    * InfiniBand, Fiber Channel 4G/8G/10G
    * Sonet Multiplatform support
    * High Performance Computing Clusters
    * High End Servers
    * Metro Network Switch/Cross Connect

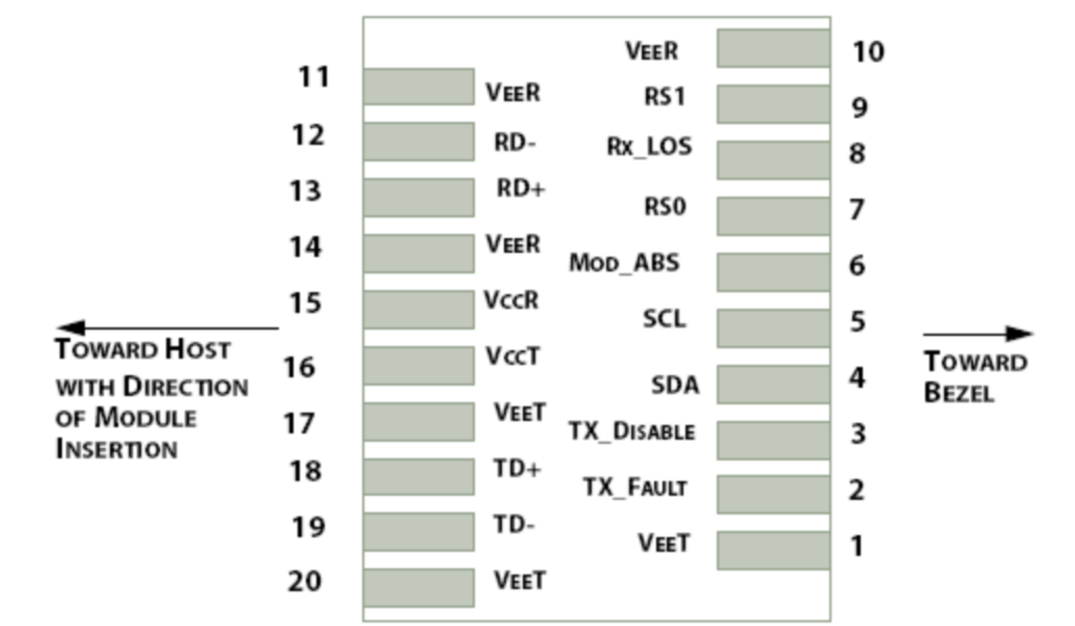

    Pin Definitions
    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor
    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor
    Mechanical Dimensions
    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor
    Specification
    Test Type
    Test Item
    Target
    Reference



    Electrical Characteristics
    Differential Mode RL(SDDII)
    0.01<4.1 ; < -12+2*sqrt(f )
    4. 1<11. 1 ; <-6.3+13*log10(f 5.5)
    Where f is in GHz
    Measurements units: dB
    SFF 8431
    Common mode return loss (SCCII)
    0.01<2.5 ; <-7+1.6(f )
    2.5<11.1 ; <-3
    Where f is in GHz
    Measurements units: dB
    SFF 8431
    NEXT
    <-26dB from 1MHz to 11GHz
    /
    Cable assembly Impedence
    100+/ -100hm
    Rise time of 30 ps (20 %- 80 %)
    (20%~80 %)
    Insertion Loss Deviation
    -1dB≤ILD≤1dB
    300KHz≤f≤6GHz
    /



    Environmental Characteristics
    Operating Temperature
    -40~85°C
    Cable operating temp. range
    Thermal Shock
    Electrical performance meet the specification requirement
    EIA-364-32D. Method A. TC-1. -55 10 85C,100 cycles, 15 min, dwells
    Cyclic Temp. & Humidity
    Electrical performance meet the specification requirement
    EIA-364-31 Method III,Test Cond A
    Salt spray
    48 hours salt spraying after shell corrosive area less than 5%
    EIA-364-26
    Temperature Life
    Performance meets the specification requirement
    EIA-364-17B w/ RH, Damp heat 85C at 85% RH for 500 hours
    Application Cautions
    ESD This transceiver is specified as ESD threshold 1kV for high speed pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment. LASER SAFETY This is a Class 1 Laser Product according to IEC 60825-1:1993:+A1:1997+A2:2001. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (July 26, 2001)
    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor
    Optical Cable Direct Attach Passive Copper 40G DAC SFP Patch Cord with 1 Conductor
