    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture

    Ask Lasest Price
    Model Number : OTDR
    Brand Name : OEM
    Price : $290.00/pieces 500-1999 pieces
    • Product Details
    • Company Profile

    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture

    Products Description

    Description

    The 6420B is used to measure the length, loss, splice quality, and other parameters of various types of optical fiber and optical cable, and is widely used in the fields of engineering construction, line maintenance, and emergency rescue testing of optical fiber to the home, metropolitan networks, and secondary backbone communication systems, as well as in the development and production measurement of optical fiber and optical cable.
    Specification
    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture



    FUNCTION

    · Auto OTDR · expert OTDR, event maps · Optical Power Meters (OPM) · Visual Red Light Fault Location (VFL) · Stabilised Light Source (LS)

    FEATURE
    ① 7" extra large touchscreen ② 28dB super dynamic range, easily test 80km fiber optic line ③ 3m ultra-short event blind zone ④ One key automatic test ⑤ Automatic s identification of fault information ⑥Multiple functions integrated into one ⑦ With the light test, easy to test fault problems in fiber optic lines ⑧ 4600mA large capacity battery, ultra-long life
    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture
    Type
    6420B
    Weight
    ≈0.8kg (including battery)
    External dimensions
    177mm x 109mm x 37mm (excluding soft plastic)
    Maximum dynamic range
    28dB
    External interfaces
    USB Type C, Micro SD
    Battery operating time
    standby ≥ 6h(High brightness)
    Display
    7" TFT colour LCD (capacitive touch screen)
    Operating wavelength
    1310/1550±20nm
    Optical output
    interface FC/UPC SC/UPC

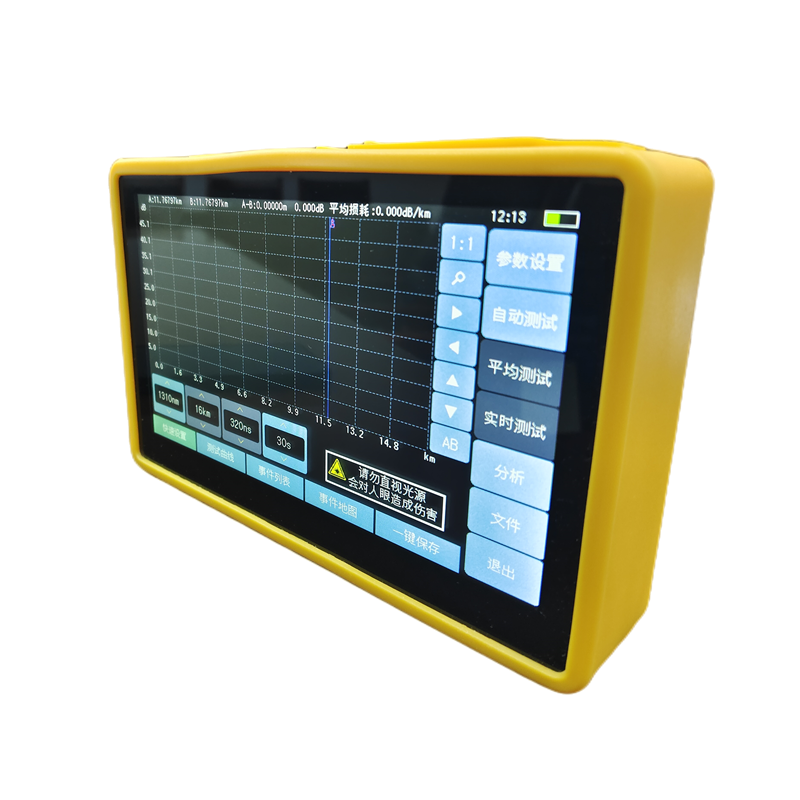

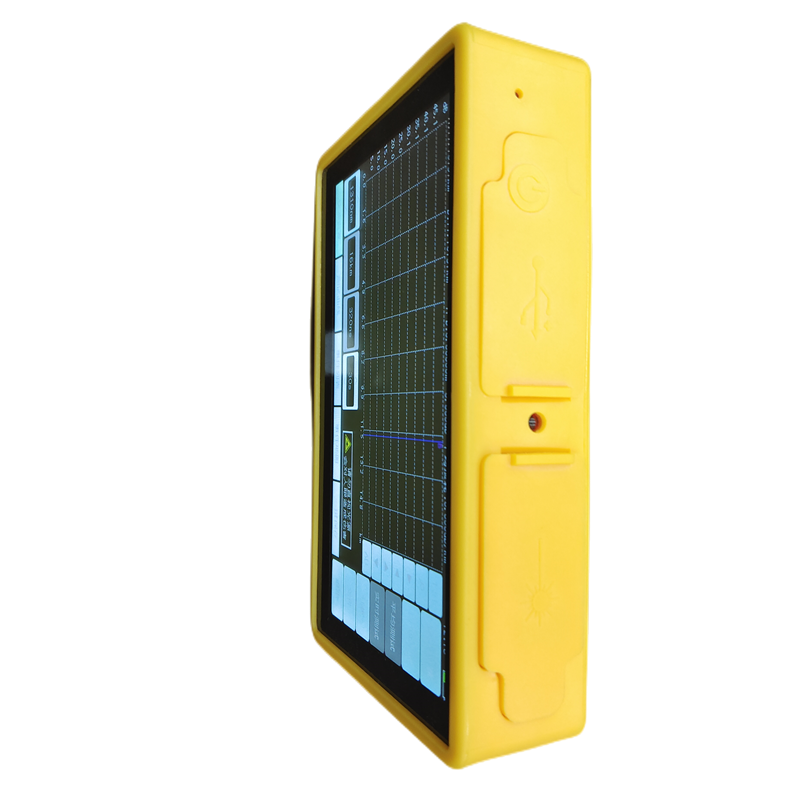

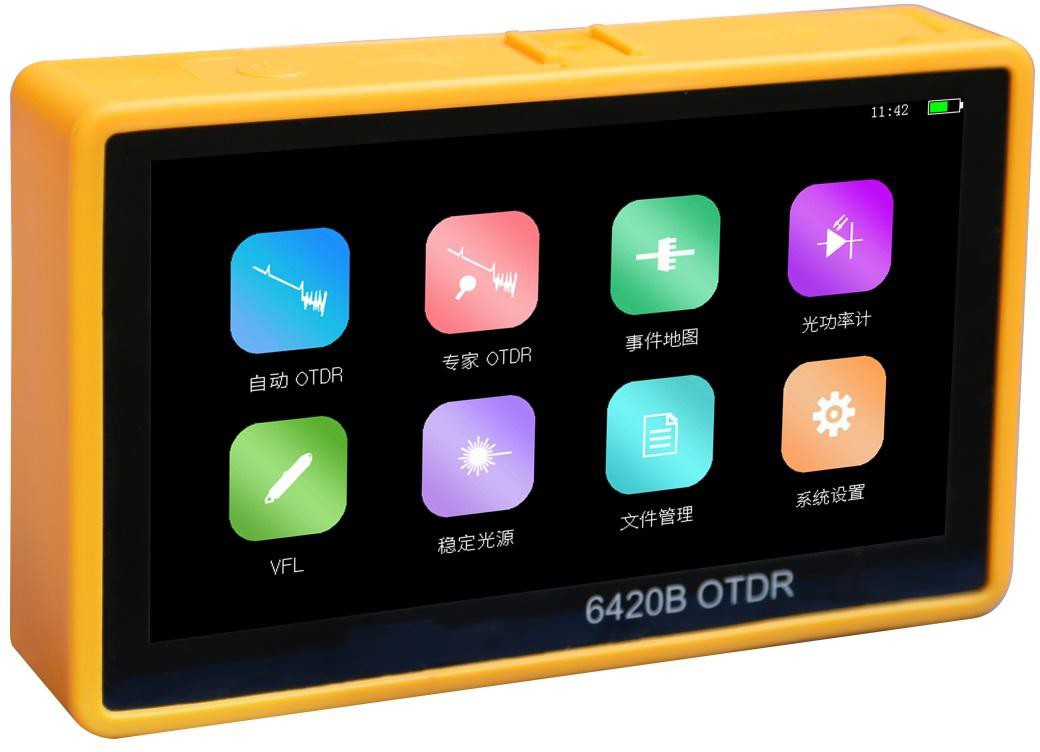

    Details Images
    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture
    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture
    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture
    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture
    28dB 7" Extra Large Touchscreen mini OTDR Must-Have for Fiber Optic Manufacture
