    Self-Supporting ADSS Fiber Optic Cable Transparent Cable for Outdoor FTTH Applications

    Ask Lasest Price
    Model Number : ADSS cable
    Brand Name : oem
    Supply Ability : 10000 Kilometer/Kilometers per Month
    Price : $0.52/meters 10-99 meters
    • Product Details
    • Company Profile

    Self-Supporting ADSS Fiber Optic Cable Transparent Cable for Outdoor FTTH Applications

    Products Description
    ADSS Cable fiber optic cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network. AFL manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.
    Self-Supporting ADSS Fiber Optic Cable Transparent Cable for Outdoor FTTH Applications




    ADSS cable Continuous electrical erection
    · Superior resistance to electric marks with AT sheath · Light weight, small cable diameter, reduced ice, wind impact and load on
    tower, support · Excellent tensile and temperature properties · Life expectancy up to 30 years



    ADSS cable FEATURES
    *Can be installed without shutting off the power
    *Excellent AT performance, inductive at the operatingpoint of AT sheath can reach 25kV
    *Light weight and small diameter reducing the loadcaused by ice and wind and the load on towers andbackprops ; *Large span lengths and the largest span is over1000m ; *The design life span is 30 years perature
    *The design life span is 30 years
    Self-Supporting ADSS Fiber Optic Cable Transparent Cable for Outdoor FTTH Applications
    Self-Supporting ADSS Fiber Optic Cable Transparent Cable for Outdoor FTTH Applications
    item
    value
    Model Number
    outdoor fiber optic cable
    Type
    Fiber Optic Cable
    Place of Origin
    China
    Zhejiang
    Brand Name
    OEM
    Use
    FTTH
    Warranty Time
    20 years
    Network
    None
    Model NO.
    Aerial Fiber Cable
    Certification
    RoHS, CE, ISO9001

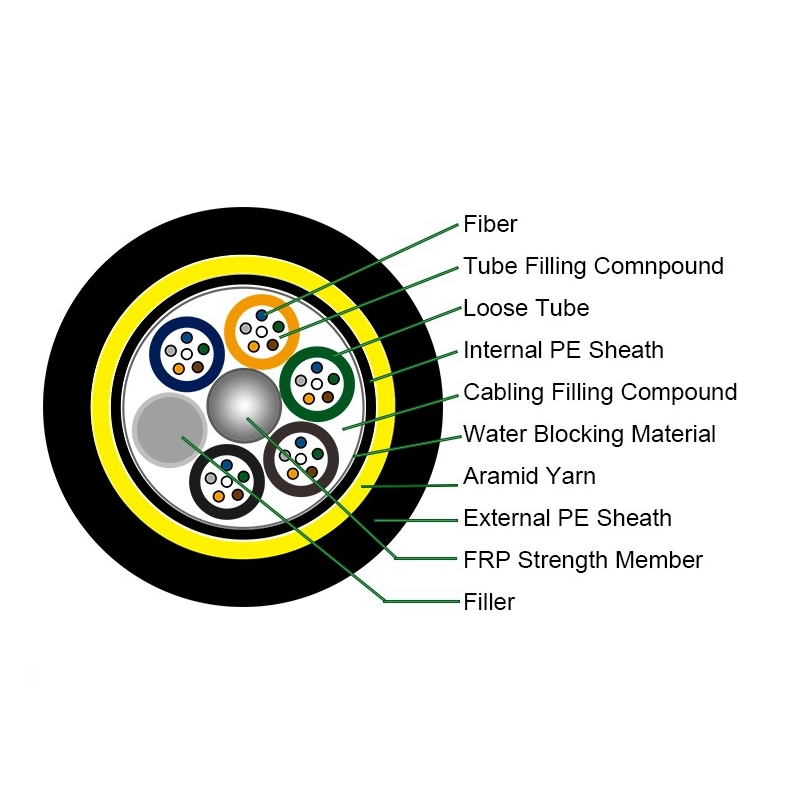

    Sheath Material
    LSZH, HDPE, MDPE
    Fiber Mode
    G652D/G657A
    Fiber Core
    2-144 Cores
    Central Strengthen Member
    FRP
    Strength Member
    Aramid Yarn
    Material of Loose Tube
    PBT Multi Loose Tubes
    Water Blocking System
    Filling Compound/Dry Water Resistant
    Fiber Specifications
    Fiber style
    Unit
    SM G652D
    SM G657A1
    SM G657A2
    Condition
    nm
    1310/1550
    1310/1550
    1310/1550
    Attenuation
    dB/km
    ≤0.36/0.23
    ≤0.35/0.21
    ≤0.35/0.21
    Dispersion
    1310nm
    Ps/(nm*km)
    ≤18
    ≤18
    ≤18
    1550nm
    Ps/(nm*km)
    ≤22
    ≤22
    ≤22
    Zero dispersion wavelength
    nm
    1312±10
    1312±10
    1300-1324
    Zero dispersion slope
    ps/(nm²×Km)
    ≤0.091
    ≤0.090
    ≤0.092
    PMD Maximum Individual Fiber
    [ps/√km]
    ≤0.2
    ≤0.2
    ≤0.2
    PMD Design Link Value
    ps/(nm²×Km)
    ≤0.08
    ≤0.08
    ≤0.08
    Fiber cutoff wavelength λc
    nm
    >=1180,≤1330
    >=1180,≤1330
    >=1180,≤1330
    Cable cutoff wavelength λcc
    nm
    ≤1260
    ....
    ....
    MFD
    1310nm
    um
    9.2±0.4
    9.0±0.4
    9.8±0.4
    1550nm
    um
    10.4±0.8
    10.1±0.5
    9.8±0.5
    Self-Supporting ADSS Fiber Optic Cable Transparent Cable for Outdoor FTTH Applications
    Self-Supporting ADSS Fiber Optic Cable Transparent Cable for Outdoor FTTH Applications
