    Low Voltage FTTH GYTS Armored Fiber Cable G657A/G652D Mode ≥ 10 Conductors for Outdoor

    Ask Lasest Price
    Model Number : Fiber GYTS Cable
    Brand Name : oem
    Certification : RoHS, CE, ISO9001
    Supply Ability : 1000 Kilometer/Kilometers per Month
    Price : $2.00/kilometers 50-499 kilometers
    • Product Details
    • Company Profile

    Low Voltage FTTH GYTS Armored Fiber Cable G657A/G652D Mode ≥ 10 Conductors for Outdoor

    Products Description

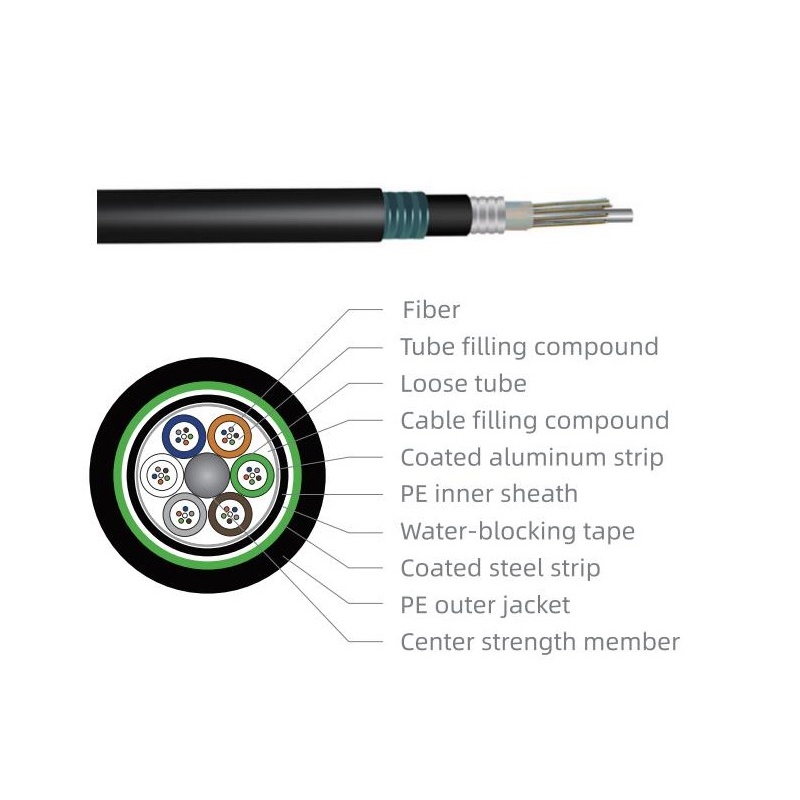

    GYTS Cable outdoor fiber optic cable, is also called multi loose tube steel tape external cable, is consisted of 250um fibers held in oil filled PBT loose tubes wrapped around a phosphatized steel wire central strength member. This is surrounded by either water blocking jelly, a aluminum tape laminated on both sides with polyethylene and bonded tightly to the PE sheath
    Low Voltage FTTH GYTS Armored Fiber Cable G657A/G652D Mode ≥ 10 Conductors for Outdoor





    GYTS Cable APPLICATIONS
    - Adapted to outdoor distribution.
    - Suitable for external applications in ducts and aerial applications.
    - Long distance and local area network communication.



    GYTS Cable FEATURES
    * High strength loose tube that is hydrolysis resistant
    * Special tube filling compound ensure a critical protection of fiber
    * PE sheath protects cable from ultraviolet radiation
    * Good crush ability,applies for duct and directly buried application
    * Special tube filling compound ensure a critical protection of fiber
    * Double APL layers prevent the moisture
    Low Voltage FTTH GYTS Armored Fiber Cable G657A/G652D Mode ≥ 10 Conductors for Outdoor
    Low Voltage FTTH GYTS Armored Fiber Cable G657A/G652D Mode ≥ 10 Conductors for Outdoor
    item
    value
    Model Number
    outdoor fiber optic GYTS Cable
    Type
    Fiber Optic GYTS Cable
    Place of Origin
    China
    Zhejiang
    Brand Name
    OEM
    Use
    FTTH
    Warranty Time
    20 years
    Network
    None
    Model NO.
    Aerial Fiber GYTS Cable
    Certification
    RoHS, CE, ISO9001
    Sheath Material
    LSZH, HDPE, MDPE GYTS Cable
    Fiber Mode
    G652D/G657A GYTS Cable
    Fiber Core
    2-144 Cores GYTS Cable
    Central Strengthen Member
    FRP GYTS Cable
    Strength Member
    Aramid Yarn GYTS Cable
    Material of Loose Tube
    PBT Multi Loose Tubes
    Water Blocking System
    Filling Compound/Dry Water Resistant
    Fiber Specifications
    Fiber style
    Unit
    SM G652D
    SM G657A1
    SM G657A2
    Condition
    nm
    1310/1550
    1310/1550
    1310/1550
    Attenuation
    dB/km
    ≤0.36/0.23
    ≤0.35/0.21
    ≤0.35/0.21
    Dispersion
    1310nm
    Ps/(nm*km)
    ≤18
    ≤18
    ≤18
    1550nm
    Ps/(nm*km)
    ≤22
    ≤22
    ≤22
    Zero dispersion wavelength
    nm
    1312±10
    1312±10
    1300-1324
    Zero dispersion slope
    ps/(nm²×Km)
    ≤0.091
    ≤0.090
    ≤0.092
    PMD Maximum Individual Fiber
    [ps/√km]
    ≤0.2
    ≤0.2
    ≤0.2
    PMD Design Link Value
    ps/(nm²×Km)
    ≤0.08
    ≤0.08
    ≤0.08
    Fiber cutoff wavelength λc
    nm
    >=1180,≤1330
    >=1180,≤1330
    >=1180,≤1330
    Cable cutoff wavelength λcc
    nm
    ≤1260
    ....
    ....
    MFD
    1310nm
    um
    9.2±0.4
    9.0±0.4
    9.8±0.4
    1550nm
    um
    10.4±0.8
    10.1±0.5
    9.8±0.5
    Low Voltage FTTH GYTS Armored Fiber Cable G657A/G652D Mode ≥ 10 Conductors for Outdoor
    Low Voltage FTTH GYTS Armored Fiber Cable G657A/G652D Mode ≥ 10 Conductors for Outdoor
    1. Are you a manufacturer or trade company?

    We are the manufacturer with nearly 20 years' history.

    2. What is your fiber brand ?

    Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

    3. What is your main product ?

    Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal
    Box, except that, we have very good prices for part of fiber tools!

    4. How can we place order?

    After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance
    payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship
    forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very
    competitive freight cost!

    5. What is the quality for your product?

    All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our
    contract!

    6. How do you arrange the shipping?

    Solution A: Fibconet take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office.
    There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them
    according to your express account or ship them by our agent company, the delivery time is about four days).
    Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follow the company's instructions and finish
    the shipping.

    7. How can you guarantee the delivery time?

    1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich
    experience. We can regulate the penalty clause in the contract for the late delay.

    8. What's your best price for your passive fiber optic product?

    Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
    time.

    9. What is your quality control for your fiber optic product ?

    1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and
    satisfy exporting quality level demand.
    2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical
    test, optical test. They are 100% tested.
    3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
    4. We have 30% spot test by Quality Assurance Department after the products finished.
