    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial

    Ask Lasest Price
    Model Number : GYTC8S fiber optic cable
    Brand Name : Fibconet
    Price : $0.90/kilometers 500-1999 kilometers
    • Product Details
    • Company Profile

    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial

    GYTC8S 2~144 core underground direct buried OEM single mode armored fiber optic cable self-sustaining fiber optic cable
    Products Description

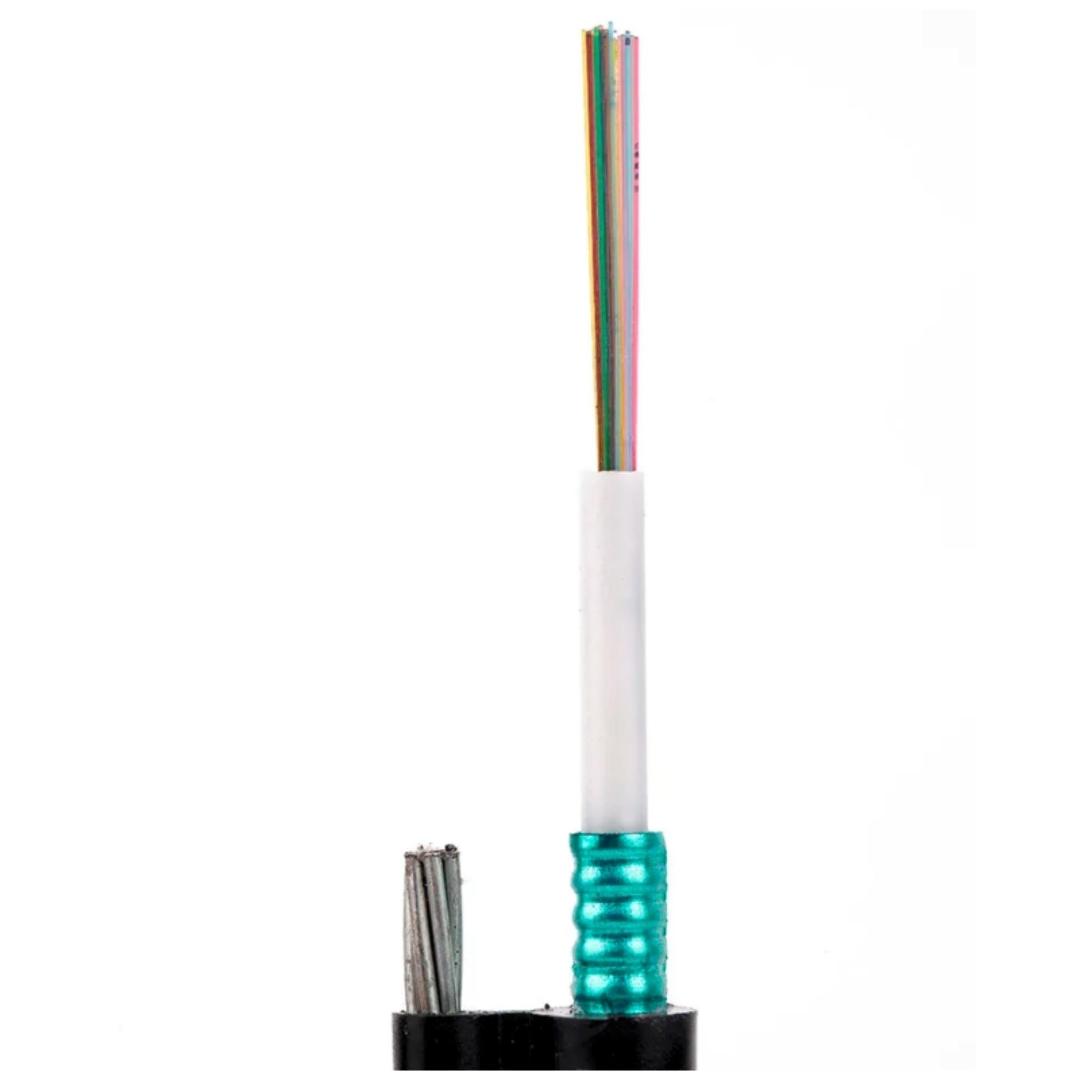

    250 μm fibers are placed in a loose tube made of high-modulus plastic filled with a waterproof filler, a steel wire is placed in the center of the core to act as a metal strength member, the tube (and filler) is twisted around the strength member to form a compact round core, and then a steel strip (PSP) is laid around the core to act as a moisture barrier, this part of the cable is finished off with the stranded steel wire as a support part and is sheathed in polyethylene (PE).
    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial
    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial
    Grade A Fiber
    Good quality Fiber assure the Stable transmission, anti-interference, Reliable welding and low loss
    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial
    PBT Material
    High-quality loosen tube material, Protect the core and anti-aging
    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial
    New HDPE/PE Material
    Smooth apperance, UV resistant, Long service life of the fiber optic cable
    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial
    FRP Strength Member
    Corrostion resistant, not easy to age, low water absorption
    Technical Parameters
    Fiber count
    Structure
    Fibers per tube
    Loose tube diameter
    (mm)
    CSM diameter
    /pad diameter
    (mm)

    Nominal Thickness of outer jacke(mm)

    Cable diameter/
    Height
    (mm)
    Cable
    Weight
    (kg/km)
    4
    1+5
    4
    1.7±0.1
    1.4/1.4
    1.6
    9.0 ±0.5/15.9 ±0.8
    145
    6
    1+5
    6
    1.7±0.1
    1.4/1.4
    1.6
    9.0 ±0.5/15.9 ±0.8
    145
    8
    1+5
    4
    1.7±0.1
    1.4/1.4
    1.6
    9.0 ±0.5/15.9 ±0.8
    146
    12
    1+5
    6
    1.7±0.1
    1.4/1.4
    1.6
    9.0 ±0.5/15.9 ±0.8
    146
    24
    1+5
    6
    1.7±0.1
    1.4/1.4
    1.6
    9.0 ±0.5/15.9 ±0.8
    147
    36
    1+6
    6
    1.7±0.1
    1.8/1.8
    1.6
    9.4 ±5%/16.3 ±5%
    162
    48
    1+5
    12
    2.0±0.1
    1.4/1.4
    1.6
    9.7 ±5%/16.6 ±5%
    161
    72
    1+6
    12
    2.0±0.1
    2.0/2.0
    1.6
    10.4±5%/17.3 ±5%
    184
    96
    1+8
    12
    2.0±0.1
    2.2/3.5
    1.6
    12.0 ±5%/19.2 ±5%
    221
    Application
    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial
    Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial
    1. Are you a manufacturer or trade company?

    We are the manufacturer with nearly 20 years' history.

    2. What is your fiber brand?

    Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

    3. What is your main product?

    Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
    Box, except that, we have very good prices for part of the fiber tools!

    4. How can we place order?

    After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
    (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
    goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
    costs!

    5. What is the quality of your product?

    All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

    6. How do you arrange the shipping?

    Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
    office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
    ship them according to your express account or ship them by our agent company, the delivery time is about four days).
    Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and
    finishes the shipping.

    7. How can you guarantee the delivery time?

    1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
    experience. We can regulate the penalty clause in the contract for the late delay.

    8. What's your best price for your passive fiber optic product?

    Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
    time.

    9. What is your quality control for your fiber optic product?

    1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
    satisfy exporting quality level demand.
    2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
    physical test, and optical test. They are 100% tested.
    3. Optical Test. Our products are strictly tested following IEC and ITU standards.
    4. We have 30% spot test by Quality Assurance Department after the products are finished.

    10. Why choose FIBCONET Fiber Optic to cooperate?

    1. We have first-class production line and strict quality management system.
    2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
    3. We can provide the most competitive price to meet your budget.
    4. We also design and innovate new products based on our rich experience.
    5. We have professional team to provide comprehensive one-stop service for you.

    Please always feel free to contact us for any questions, it's our honor to be in service of you
